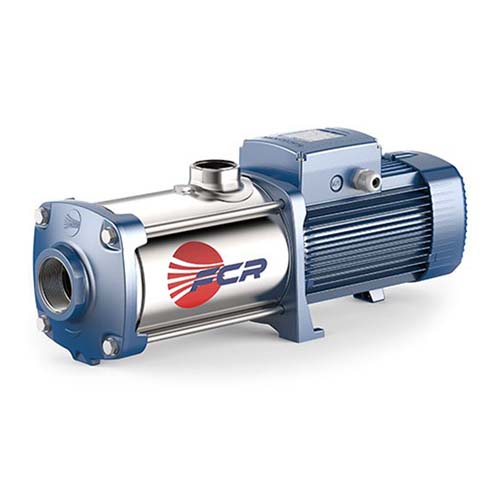

Centrifugal multistage pump Pedrollo FCR 15/2 three-phase

Code: 9337

Guarantee: 24

1430 € / 2,796.84lv.

PERFORMANCE CHARACTERISTICS:

Flow rate: up to 400 l/min (24.0 m³/h)
Head: up to 48 m

Q (m³/h)	0	3	6	12	18	24
l/min	0	50	100	200	300	400
H (m)	48	47	45.5	40.5	32	18

CONSTRUCTION CHARACTERISTICS:

Diffusers: stainless steel AISI 304
Rear cover: stainless steel AISI 304
Shaft: stainless steel AISI 316L
Mechanical seal: graphite - ceramic - EPDM

The quiet operation and low energy consumption make these pumps extremely suitable for water supply and pressure boosting in booster sets, industrial applications, irrigation systems, and more.

Pumps from the FCR 15-30 series have very high performance due to their precise fluid dynamic design. All components of the pumps are made of stainless steel with smooth surfaces that reduce friction losses and increase efficiency. The multistage design significantly reduces operating noise. The new concept motor, designed to work with an inverter, operates with balanced and low noise. Efficiency class IE3, insulation class F, and protection class IP 55. The pump components are made of thick stamped stainless steel. The mechanical seal of graphite - ceramic - EPDM allows for reliable and continuous operation for a long period.

Product Specifications

Feature	Description
Maximum head:	48 m
Maximum flow rate:	400 l/min (24.0 m³/h)
Inlet connection:	G 2½"
Outlet connection:	G 2"
Maximum suction depth:	7 m
Motor
Single-phase or three-phase motor:	Three-phase 230/400 V - 50 Hz
Power (P2):	3 kW 4 HP
Rotation speed (rpm):	2900
Insulation class:	F
Protection class:	IP 55
Energy efficiency (three-phase only):	IE3
Construction features and usage
Group:	Horizontal multistage
Pump body:	Stainless steel AISI 304
Impeller:	Stainless steel AISI 304
Usage:	Agricultural; Industrial; Public
Limits
Fluid type:	Clean water
Minimum fluid temperature:	-15°C
Maximum fluid temperature:	+90°C
Maximum ambient temperature:	+40°C
Maximum operating pressure:	12 bar
