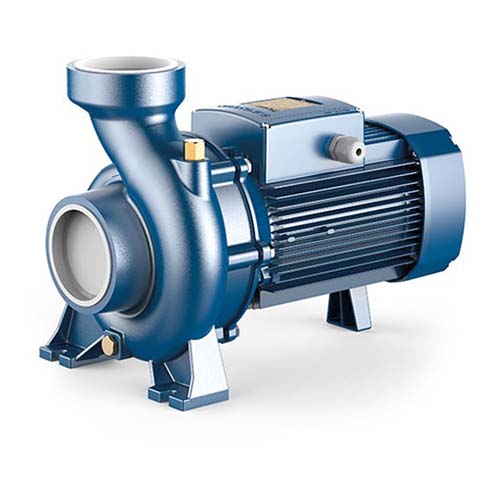

Centrifugal pump Pedrollo HFm 6A

Code: 8223

Guarantee: 24

607 € / 1,187.19lv.

OPERATING CHARACTERISTICS:

Flow rate up to 1200 l/min (72 m³/h)
Head up to 18.5 m

Q (m³/h)	0	12	18	24	30	36	42	48	54	60	66	72
l/min	0	200	300	400	500	600	700	800	900	1000	1100	1200
H (meters)	18.5	18.1	17.8	17.2	16.8	16	15	13.8	12.2	10.5	8.3	6

CONSTRUCTION CHARACTERISTICS:

Rear cover: cast iron
Shaft: stainless steel AISI 431
Mechanical seal: ceramic-graphite-NBR

Centrifugal pumps of this series are recommended for public and agricultural use. The high flow rate and performance make them particularly suitable for irrigation with running and rainwater, for drawing water from lakes, rivers, and wells. They are also suitable for industrial use when a high flow rate at a medium-low head is required. These pumps should be installed indoors or in locations protected from atmospheric influences.

Main Characteristics

Category	Specifications
Main Characteristics
Maximum Head	18.5 m
Maximum Flow Rate	1200 l/min (72 m³/h)
Inlet Connection	G 3"
Outlet Connection	G 3"
Maximum Suction Depth	7 m
Motor
Single-phase or Three-phase Motor	Single-phase 230 V - 50 Hz
Power (P2)	2.2 kW 3 HP
Rotational Speed (RPM)	2900
Insulation Class	F
Protection Class	IP X4
Energy Efficiency (only for three-phase)	IE3
Construction Characteristics and Usage
Group	High-Performance Centrifugal Pumps
Pump Body	Cast Iron
Impeller	Brass
Usage	Agricultural; Industrial
Limits
Fluid Type	Clean Water
Min. Fluid Temperature	-10°C
Max. Fluid Temperature	+90°C
Max. Ambient Temperature	+40°C
Max. Working Pressure	10 bar
