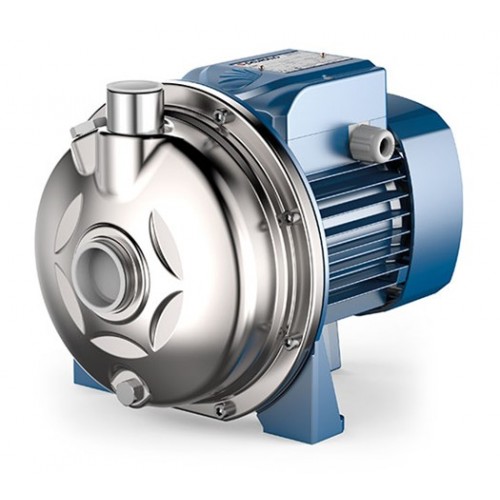

Centrifugal pump Pedrollo CP 150-ST4 three-phase

Code: 10166

Guarantee: 24

344 € / 672.81lv.

OPERATING CHARACTERISTICS:

Flow rate up to 150 l/min (9 m³/h)
Head up to 32 m

Q (m³/h)	0	0.6	1.2	2.4	3.6	5.4	6.0	7.2	8.4	9.0
l (l/min)	0	10	20	40	60	90	100	120	140	150
H (meters)	32	-	31	29.8	28	24.8	23.2	20	16	14

CONSTRUCTION CHARACTERISTICS:

Back cover: stainless steel AISI 304
Shaft: stainless steel AISI 431
Mechanical seal: ceramic-graphite-NBR, spring AISI 304

The centrifugal pumps in this series are suitable for transporting clean water without abrasive particles and chemically non-aggressive liquids relative to the materials from which the pumps are made. Due to their construction characteristics, this type of pump is widely used in households, agriculture, and industry. All components in contact with the pumped liquid are made of stainless steel AISI 304, ensuring complete hygiene and maximum resistance to corrosion. The installation of these pumps should be carried out indoors or in locations protected from weather conditions.

Main Characteristics

Category	Characteristics
Main Characteristics
Maximum head	32 m
Maximum flow rate	150 l/min (9.0 m³/h)
Inlet connection	G 1¼"
Outlet connection	G 1"
Maximum suction depth	7 m
Motor
Single-phase or three-phase motor	Three-phase 230/400 V - 50 Hz
Power (P2)	0.75 kW 1 HP
Rotational speed (RPM)	2900
Insulation class	F
Protection rating	IP X4
Construction Features and Usage
Group	Centrifugal stainless steel
Pump body	Stainless steel AISI 304
Impeller	Stainless steel AISI 304
Usage	Domestic; Agricultural; Industrial
Limits
Type of liquid	Clean water
Minimum liquid temperature	-10°C
Maximum liquid temperature	+90°C
Maximum ambient temperature	+40°C
Maximum working pressure	6 bar
