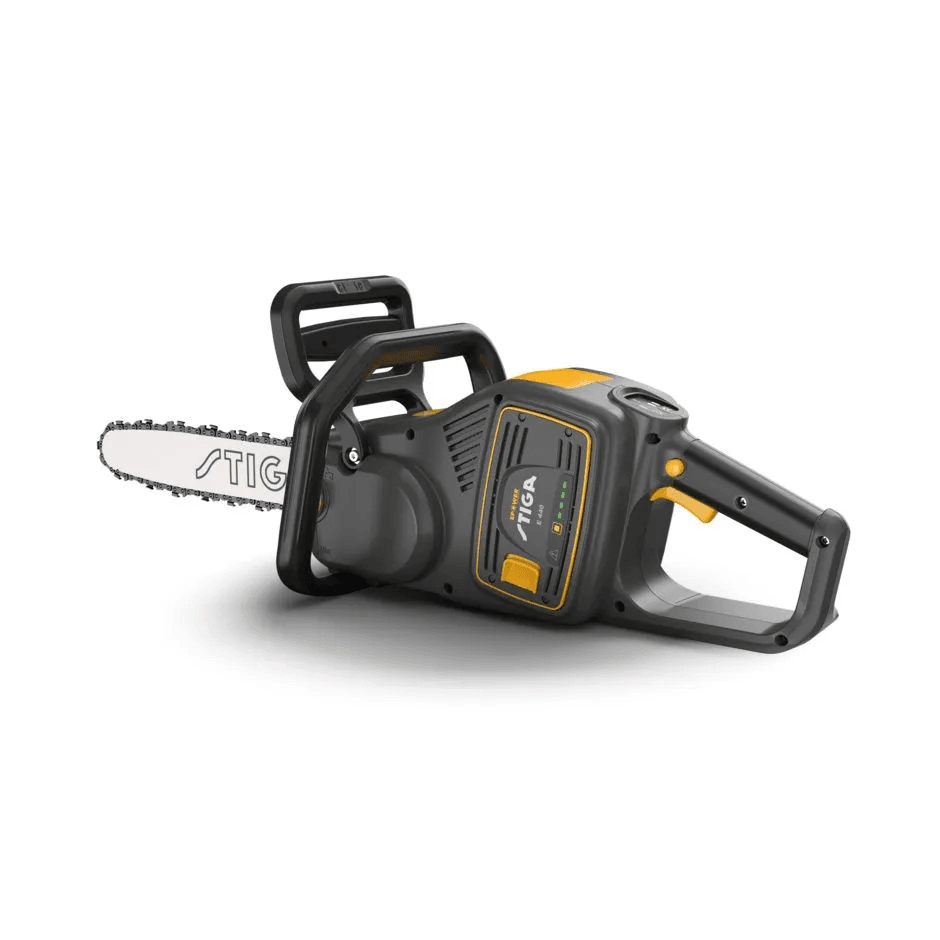

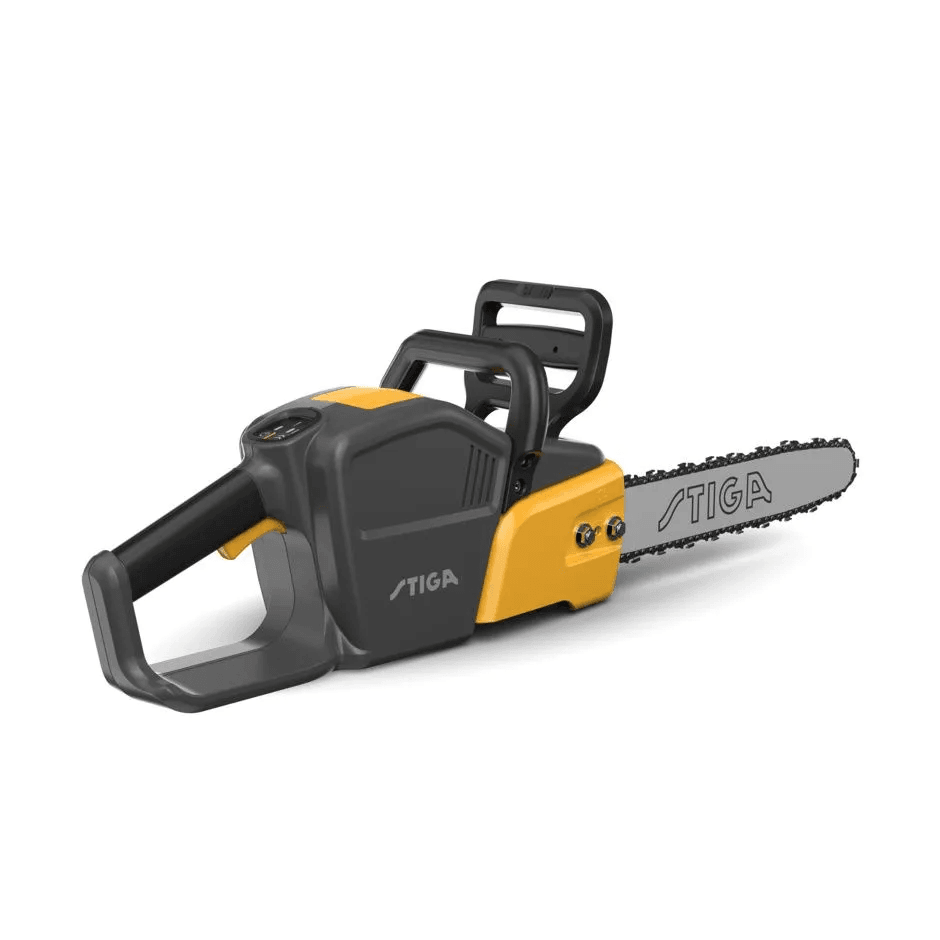

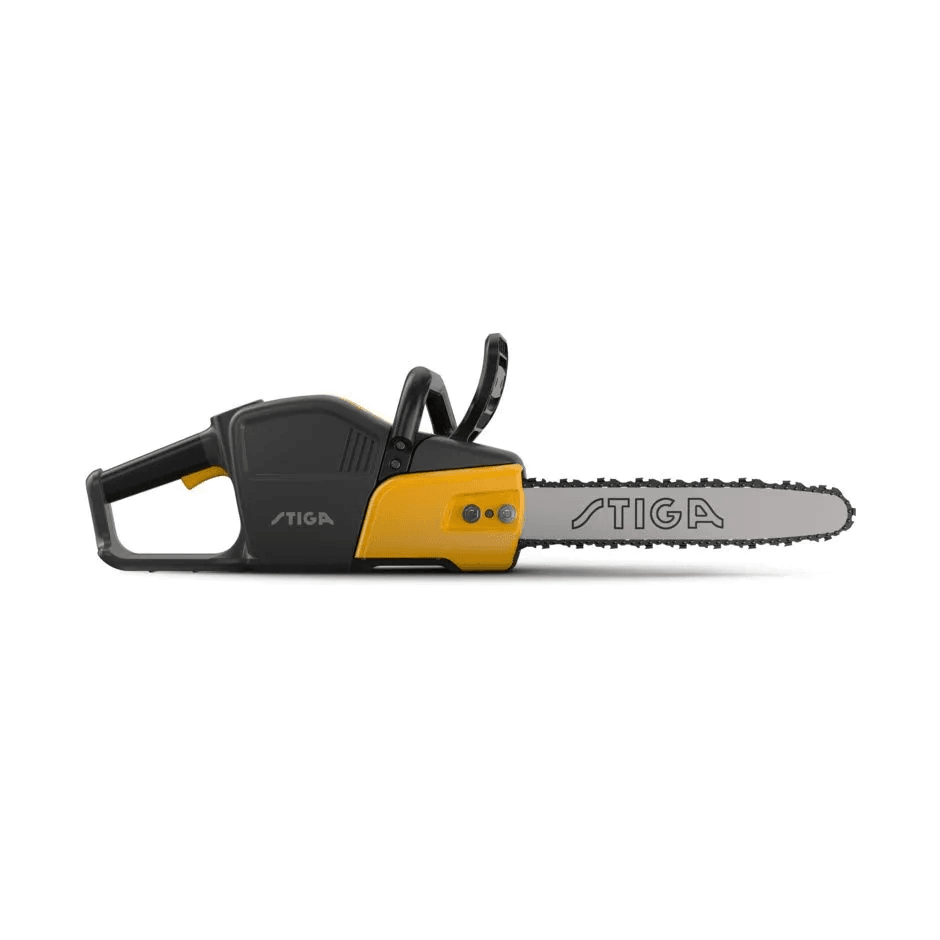

Chainsaw kit Stiga CS 700e

Featuring a powerful 1.2kW brushless motor and high-performance PX low-profile chain, our CS 700e chainsaw cuts through small trees, low to mid-height branches and logs with ease. And using just one 48V ePower battery, you can enjoy great results without the noise, vibrations and hassle of heavy petrol tools.

Part of the STIGA 7 Series, everything about this chainsaw is designed to make cutting jobs safer and more energy efficient. The inertia brake system automatically kicks in to protect you while you’re working, while the soft-touch rear handle and lightweight design ensures comfort and stability – even at high speed. And with protection built into the motor, there’s no danger of overheating and the chain getting blocked.

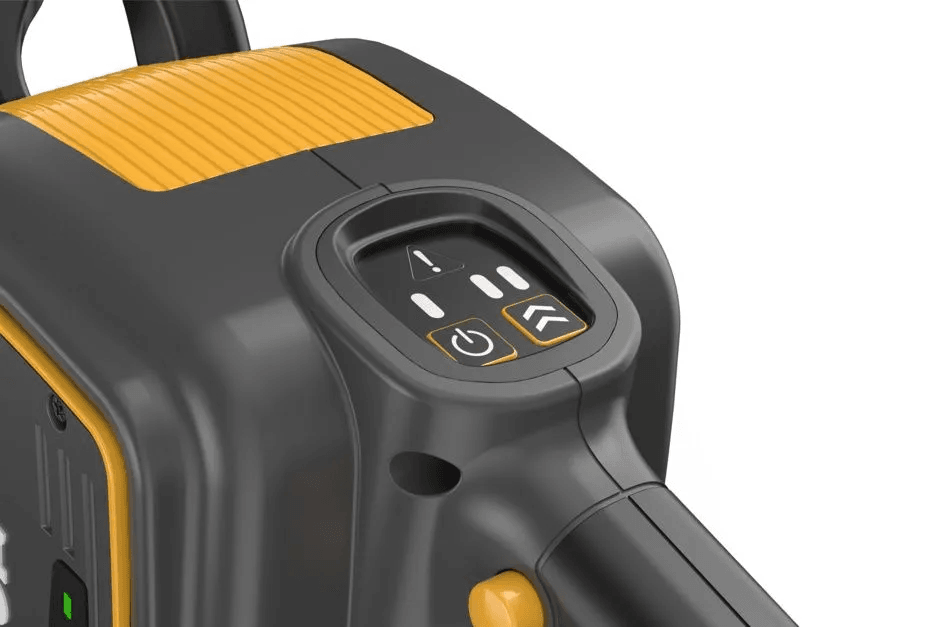

Chain tensioning is made easy thanks to the integrated nut on the side of the chain cover. Use the softkey selector pad to switch between chain speeds: choose 16 m/s to save on battery energy or 20 m/s for faster, resistance-free cutting power. And to see essential information such as the speed, battery level and when the brake is engaged, a quick glance at the LEDs on the control panel will clearly display what you need to know – even in strong sunlight. You can also check the level of oil that lubricates the chain by simply looking at the transparent tank window.

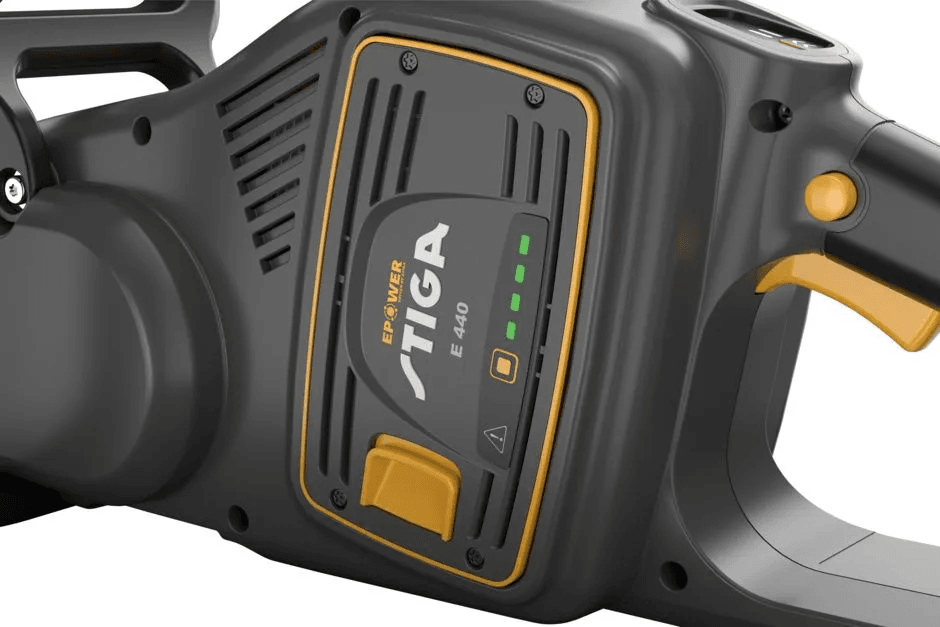

Battery and charger not included, the tool is compatible also with BH900 and BB700 (battery simulator E400S is mandatory).

GENERAL INFO

Series - Series 7, ePower 48 V

SKU - 277430008/ST1

Level - Experience

EAN/UPC - 8008984855397

POWER

Power source - Lithium-ion battery

Suggested battery capacity - 4 Ah

Voltage - 48 Volt

ePower - Yes

Power - 1.2 kW

Battery kit - Not included

Motor type - Brushless

Maximum motor speed - 11000 rpm

Overload protection - Yes

Lithium battery nominal energy - 172.8 Wh

Working time (+/- 20%) - 16 m

CUTTING SYSTEM

Bar type - Sprocket nose

Bar length - 35 cm

Bar length (inches) - 14 in

Chain type - 3/8" .050" (91PX-52X)

Chain speed - 20 m/s

Chain brake - Manual

Chain oil tank capacity - 0.24 l

Chain oil pump - Automatic

Chain tensioning system - Side screw tensioning

EQUIPMENT

Handle type - Rear handle

Soft grip handle - Yes

TOOLS KIT

Battery charger - Single standard

Battery charger output current - 1.5 A

Included tools kit - Bar key

VIBRATION AND NOISE DATA

Guaranteed sound power level (LwA) - dB(A) - 113

Measured sound power level dB(A) - 110

Measured sound pressure level at operator ear dB(A) - 99

OVERALL DIMENSIONS

Pack weight - 5.75 kg

Product weight without battery - 4.04 kg

Product weight - 4.04 kg

Product weight without bar and chain - 3.4 kg

Product length - 800 mm

Product width - 200 mm

Product height - 250 mm
