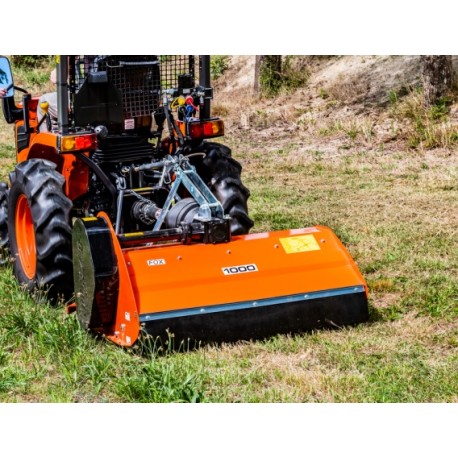

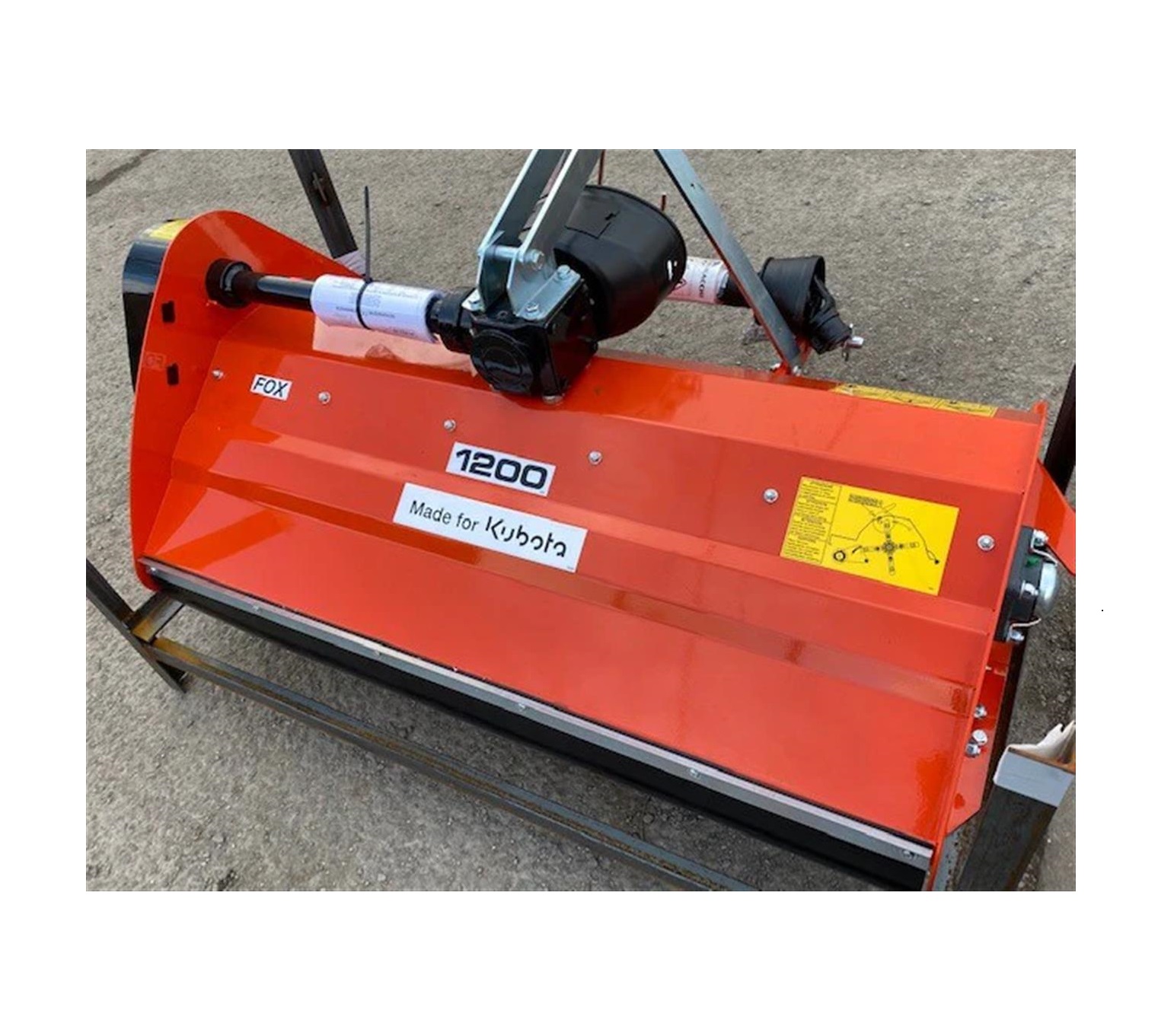

The FOX rear-mounted flail mower is designed for maintaining grass areas, meadows, orchards and other terrain requiring efficient cutting and mulching of vegetation.

The series includes FOX 1000, FOX 1200, FOX 1400 and FOX 1600, with working widths ranging from 1.00 to 1.60 m and tractor power requirements from 15 to 30 HP, depending on the model.

All models operate at 540 rpm PTO speed and provide an adjustable cutting height of 10–80 mm through the rear roller position.

Two types of mulching tools

FOX models can be configured with:

• 4 mm Y-shaped blades for grass mulching;
• 5 mm hardened hammers for high grass and small branches.

Optional 3 mm scarifying blades are also available.

Working widths from 1.00 to 1.60 m

The FOX range includes:

• FOX 1000 – 1.00 m working width
• FOX 1200 – 1.20 m working width
• FOX 1400 – 1.40 m working width
• FOX 1600 – 1.60 m working width

Adjustable cutting height

Cutting height can be adjusted from 10 to 80 mm by changing the rear roller position.

Optional equipment

Available optional equipment includes:

• 3 mm scarifying blades
• front wheel kit for improved machine control

Advantages

• Rear-mounted design
• Four working widths from 1.00 to 1.60 m
• Suitable for 15–30 HP tractors
• 540 rpm PTO
• 10–80 mm adjustable cutting height
• Rear roller height adjustment
• 4 mm Y-shaped grass blades
• 5 mm hardened hammers for high grass and small branches
• Optional 3 mm scarifying blades
• Optional front wheel kit
• Up to 100 blades depending on model
• Up to 50 hammers depending on model

Technical Specifications
