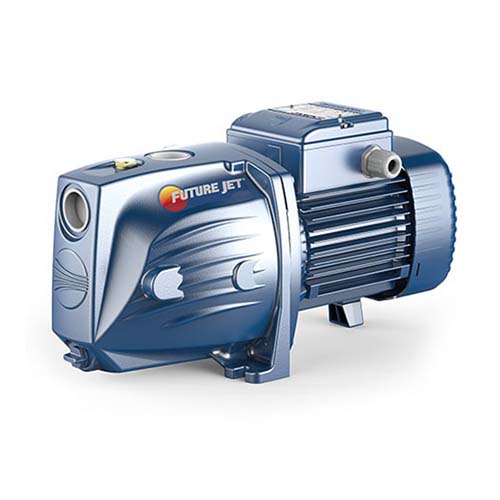

Self-priming pump Pedrollo FUTURE JETm 2CX

Code: 9746

Guarantee: 24

237 € / 463.53lv.

OPERATING CHARACTERISTICS:

Flow Rate: up to 120 l/min (7.2 m³/h)
Head: up to 50 m

Q (m³/h)	0	0.3	0.6	1.2	2.4	3.6	4.8	5.4	5.7	6.0	7.2
l/min	0	5	10	20	40	60	80	90	95	100	120
H (m)	50	47	43.8	38.3	29	22	16.2	13.5	12.3	11	6

CONSTRUCTIVE CHARACTERISTICS:

Rear Cover: Stainless steel AISI 304
Injector with Diffuser: Noryl
Shaft: Stainless steel AISI 431
Mechanical Seal: Ceramic - Graphite - NBR

ADVANTAGES OF FUTURE JET OVER CLASSIC JET PUMPS:

High hydraulic efficiency
Reduced energy consumption by up to 50%
Reduced turbulence for much more stable pump operation
Better power/flow ratio

The FUTURE JET self-priming pumps are designed for pumping clean water without abrasive particles and chemically non-aggressive liquids towards the materials from which the pumps are made. They are capable of operating even when there is air in the pumped liquid. Thanks to their reliability and ease of use, these pumps are ideal for domestic applications, including transporting water in combination with small or medium expansion vessels, garden and crop irrigation, and other applications. Pumps should be installed in enclosed spaces or in areas protected from atmospheric influences.

Characteristic	Description
Maximum Head:	50 m
Maximum Flow Rate:	120 l/min (7.2 m³/h)
Inlet Connection:	G 1"
Outlet Connection:	G 1"
Maximum Suction Depth:	9 m
Single-Phase or Three-Phase Motor:	Single-phase 230 V - 50 Hz
Power (P2):	0.75 kW (1 HP)
Rotation Speed (rpm):	2900
Insulation Class:	F
Protection Rating:	IP X4
Type:	Self-priming
Pump Body:	Cast iron
Impeller:	Technopolymer
Usage:	Domestic
Liquid Type:	Clean water
Minimum Liquid Temperature:	-10°C
Maximum Liquid Temperature:	+40°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	6 bar
