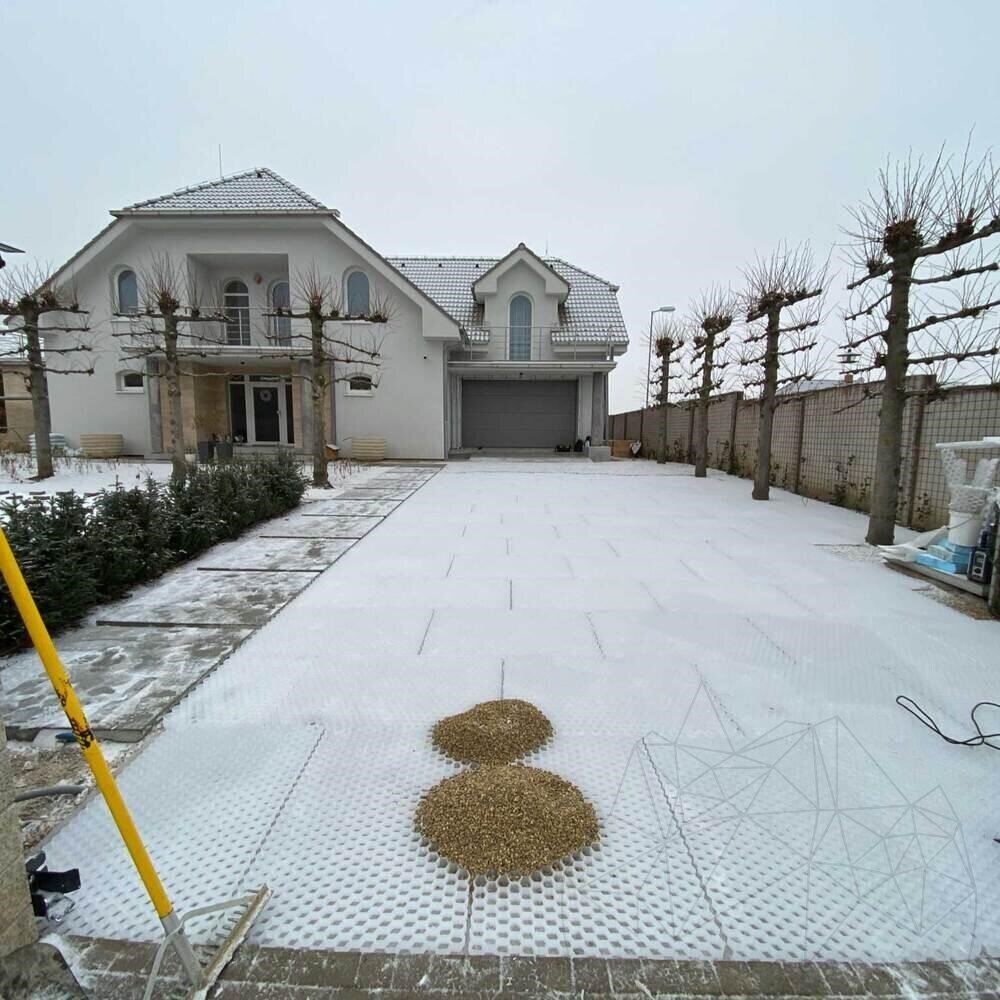

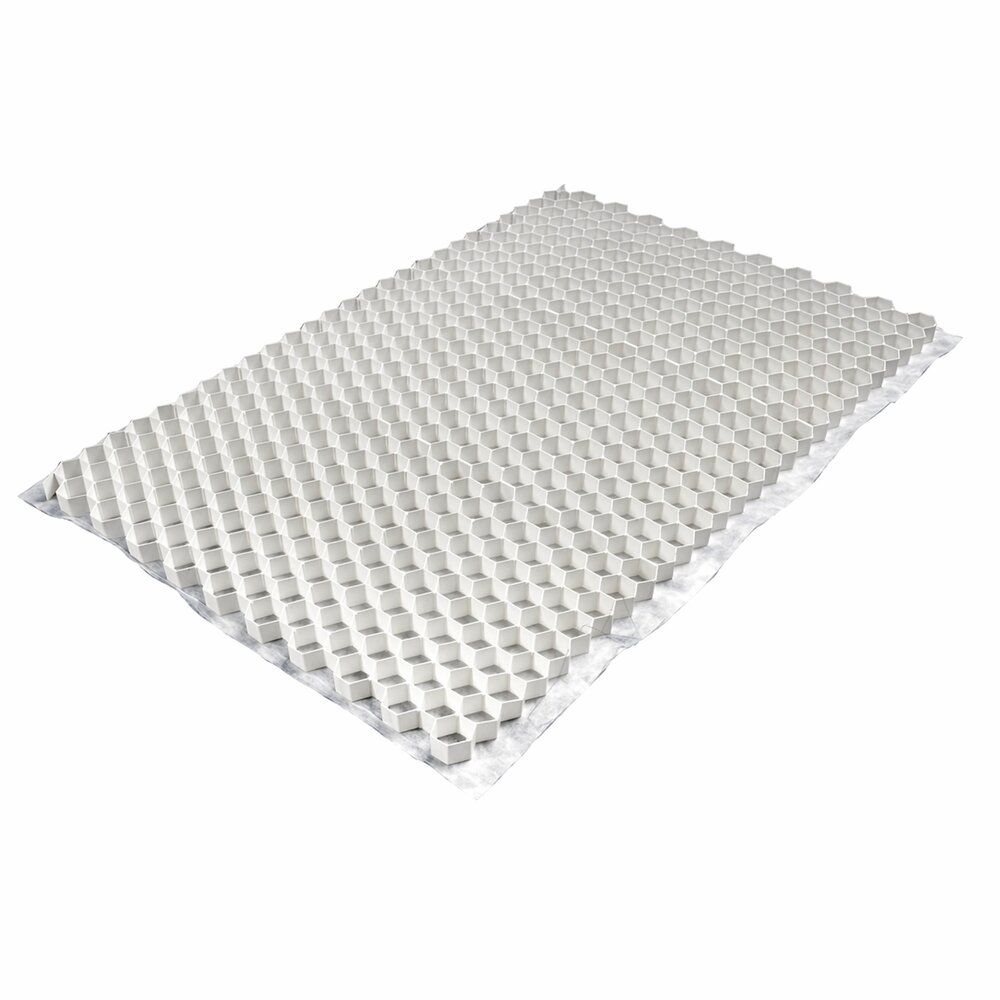

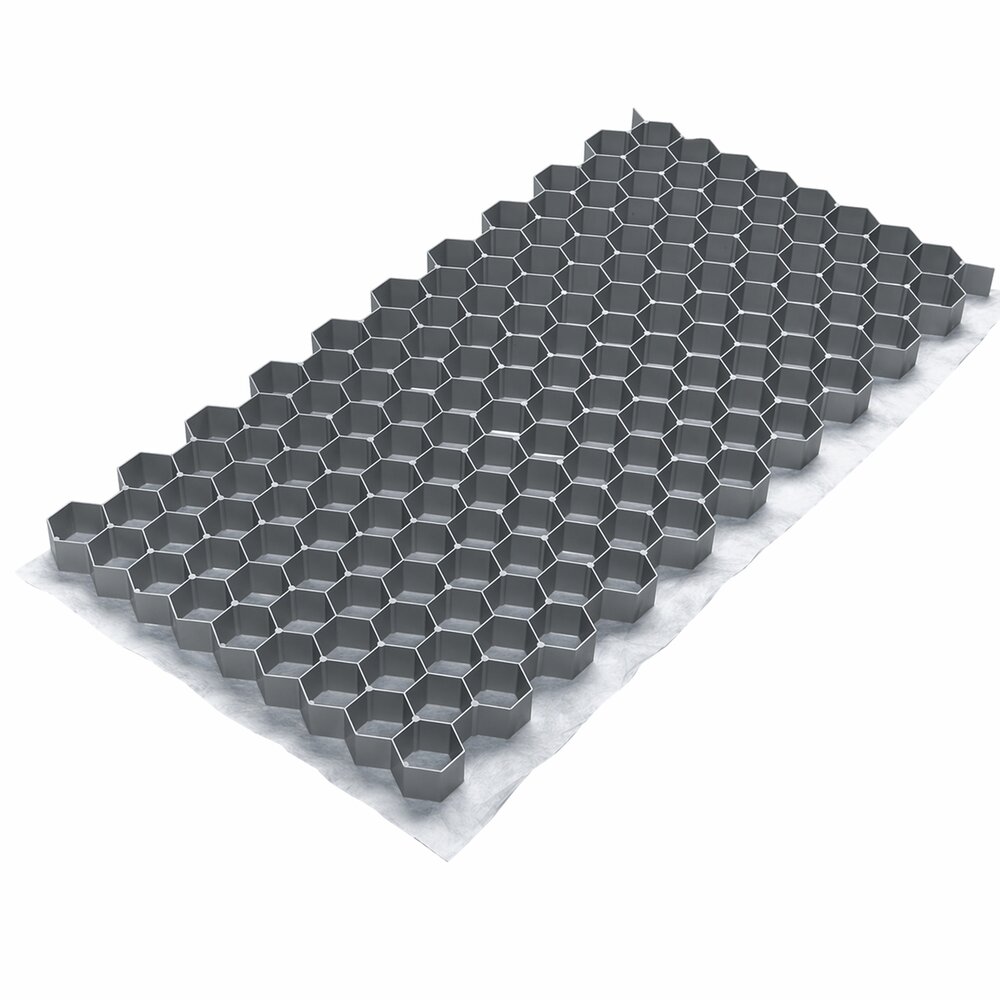

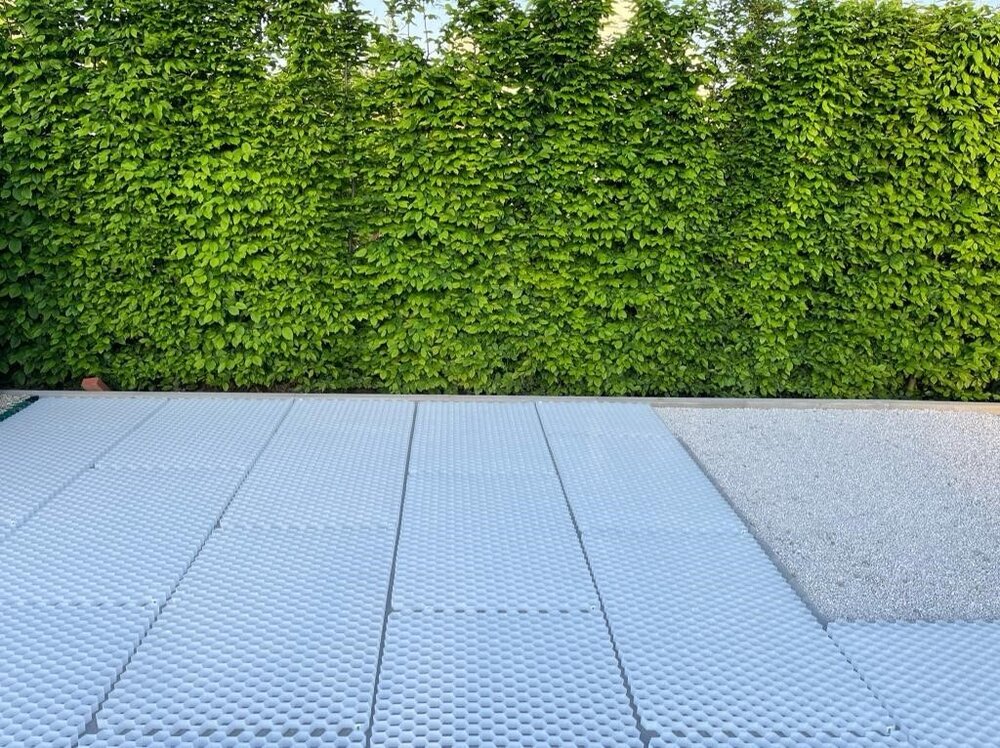

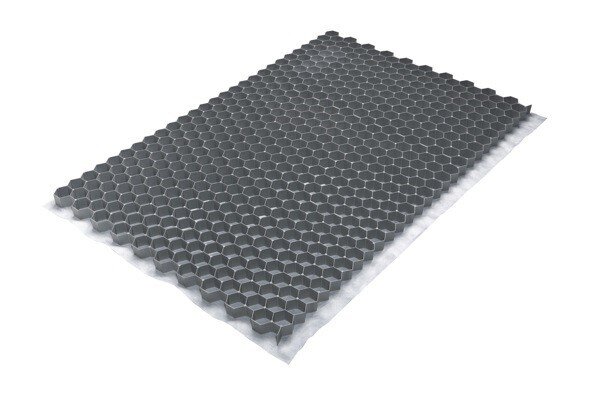

The TRAFFIC gravel stabilization grid with geotextile, 117.6 x 76.4 x 3.2 cm, is designed for parking areas, driveways, access roads, courtyards, ramps and high-load gravel surfaces. Поставен markdown

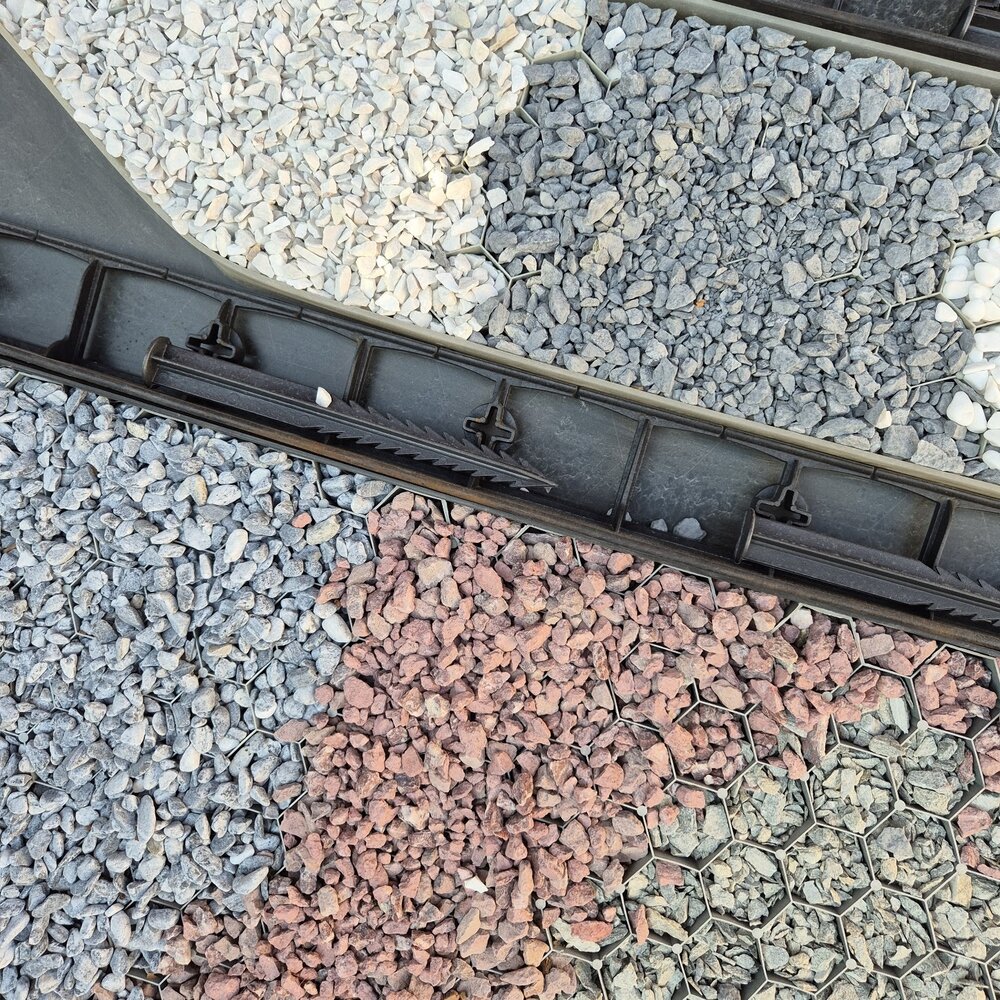

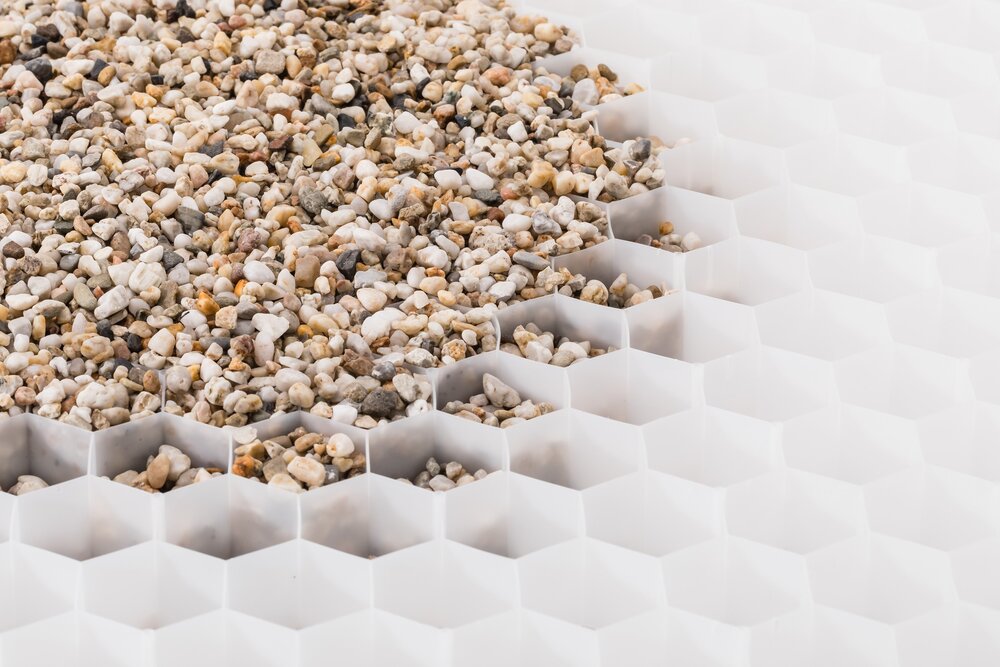

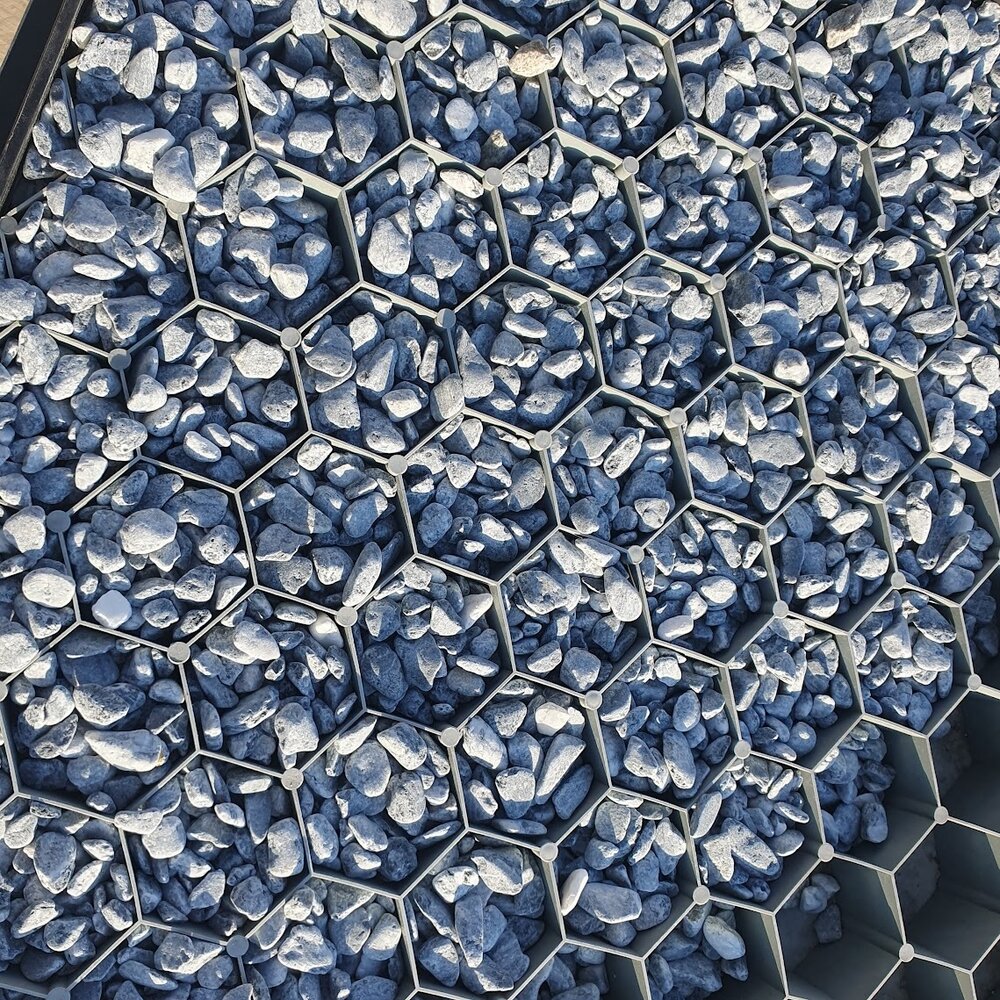

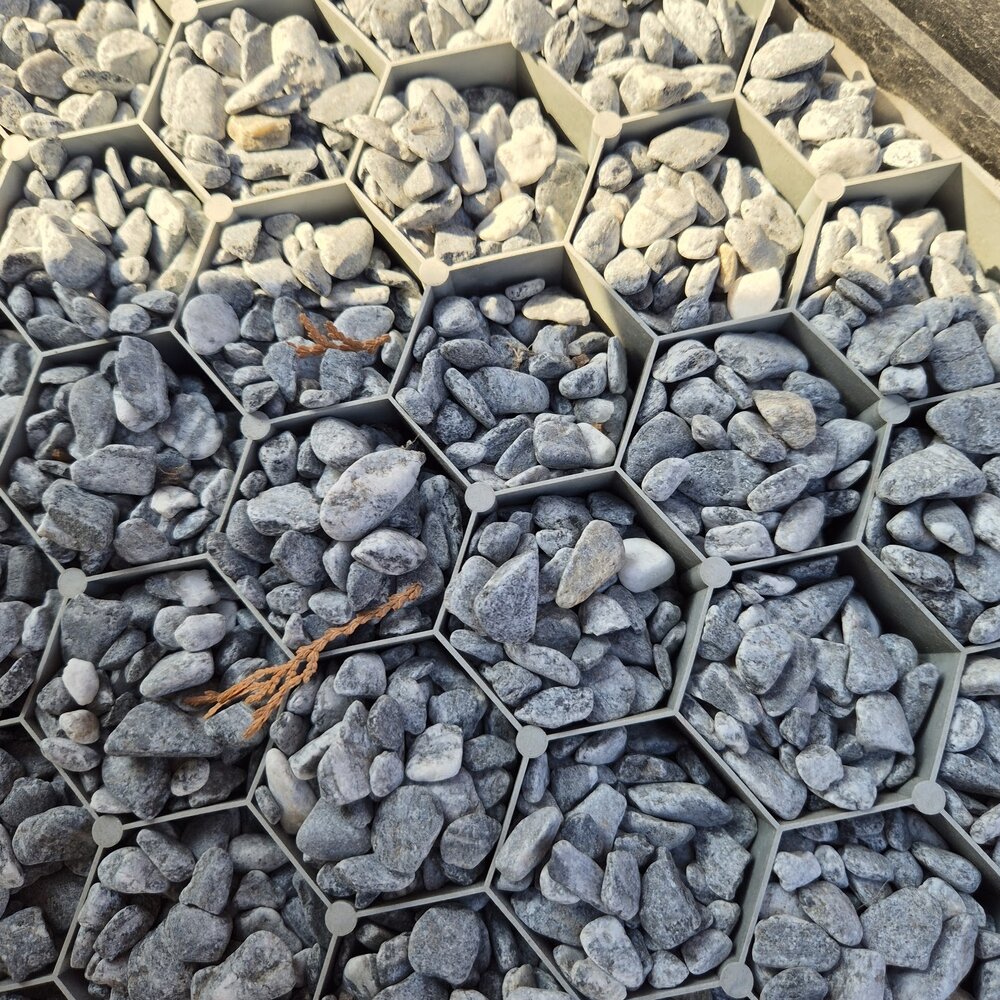

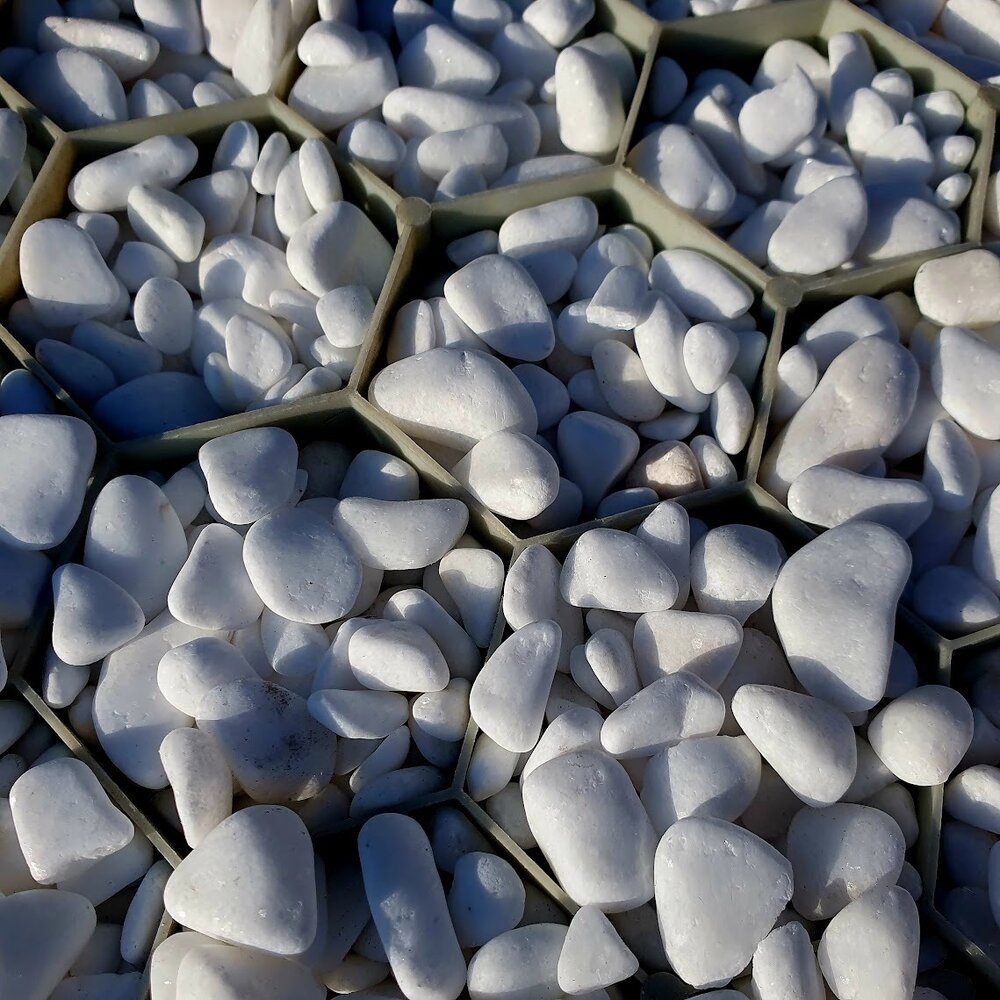

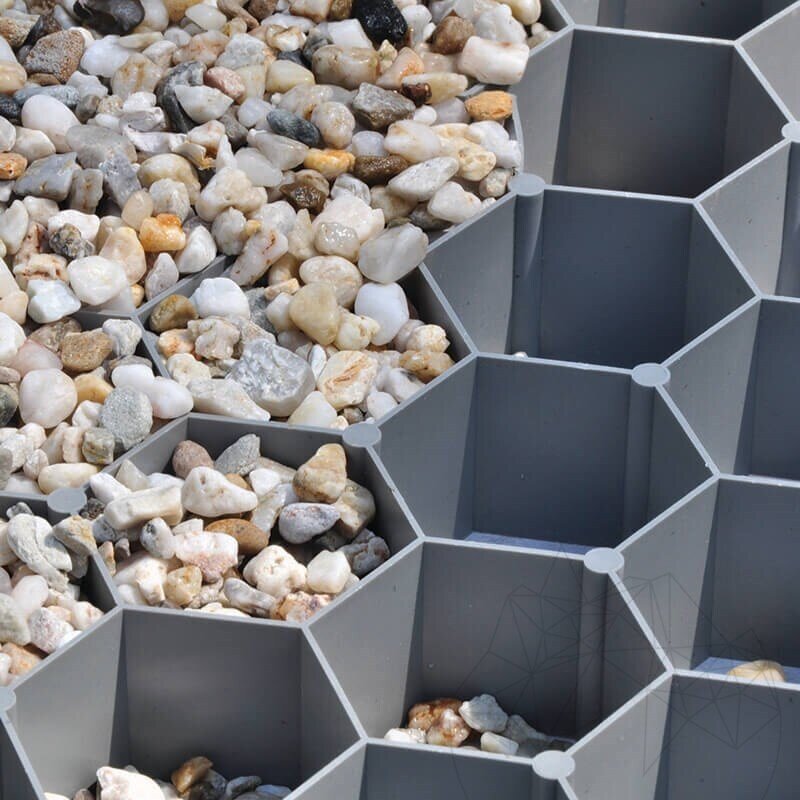

The 32 mm honeycomb structure keeps gravel within the cells and helps reduce displacement, rutting and uneven areas caused by vehicle movement.

Price is per piece.

Main specifications

• Size: 117.6 x 76.4 x 3.2 cm
• Coverage: approx. 0.90 m²
• Height: 32 mm

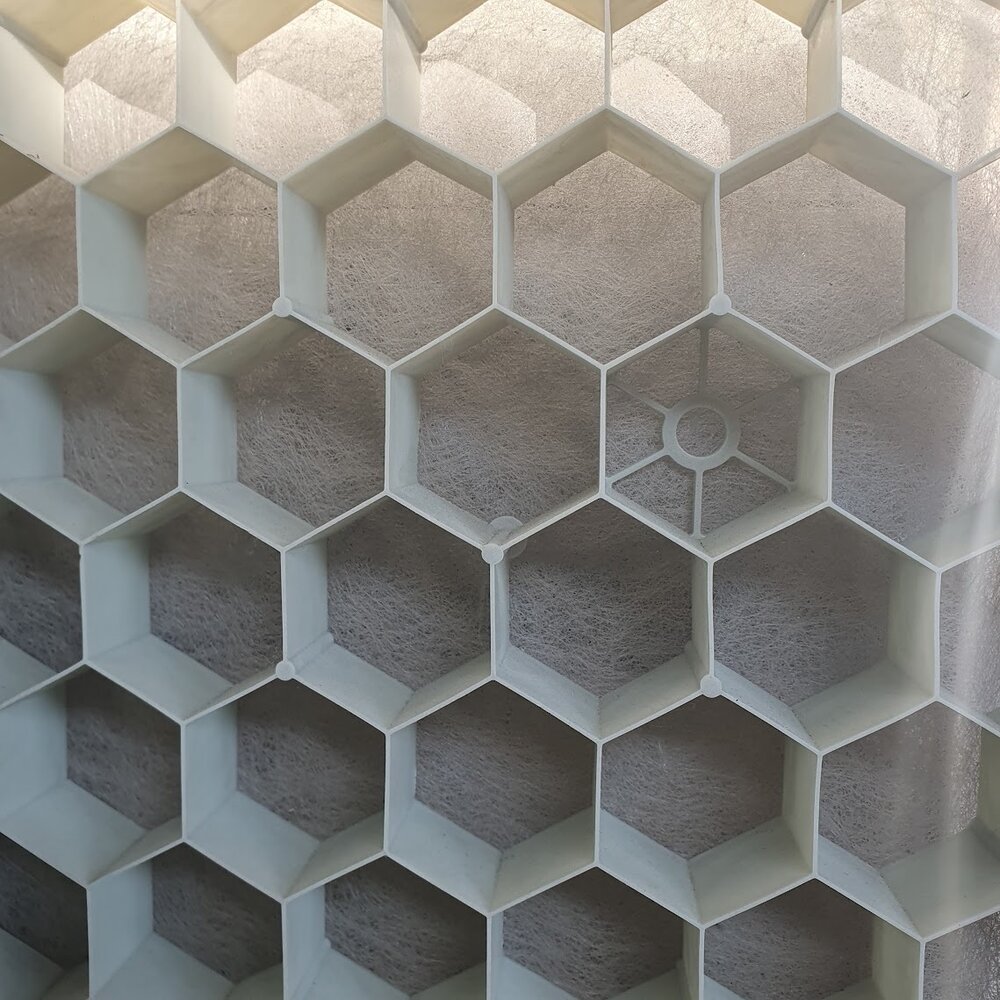

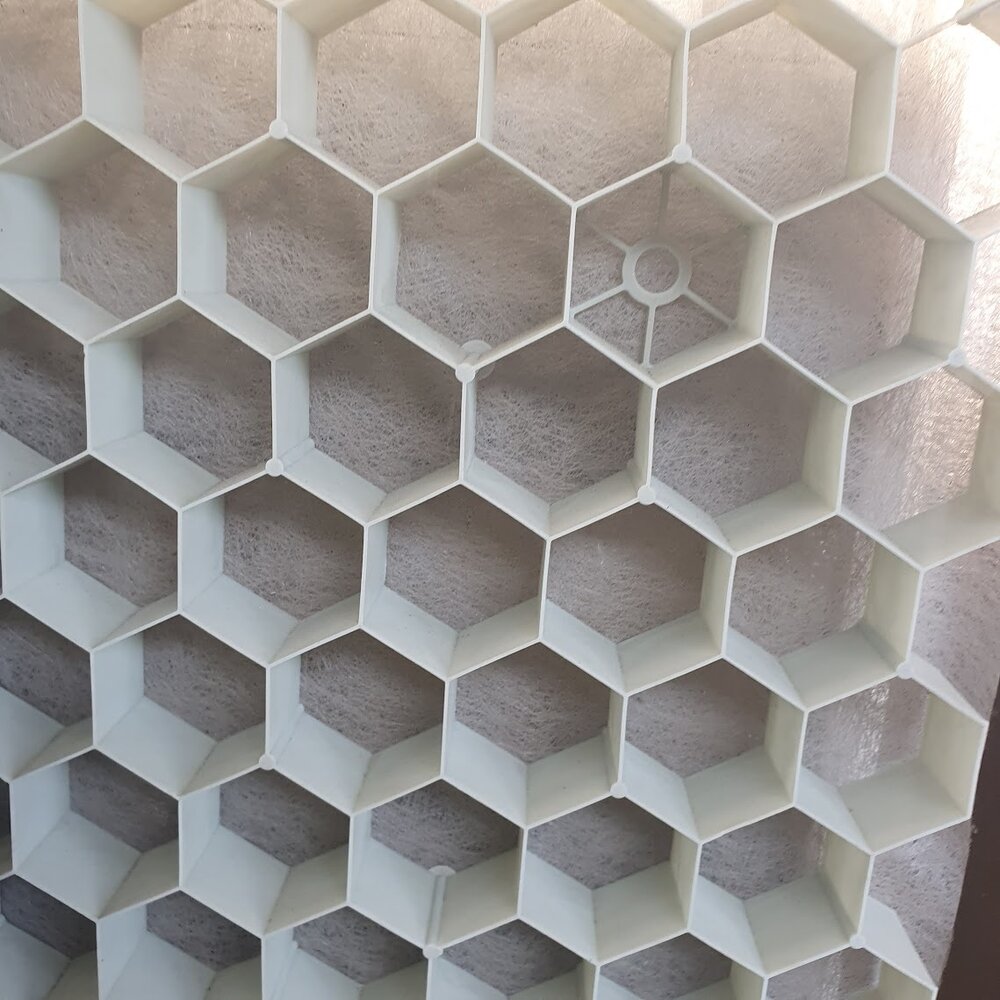

• Cell diameter: 42 mm
• Material: recyclable polypropylene
• Geotextile: DuPont™ Typar®, 68 g/m²
• Colors: white or grey

Gravel requirement

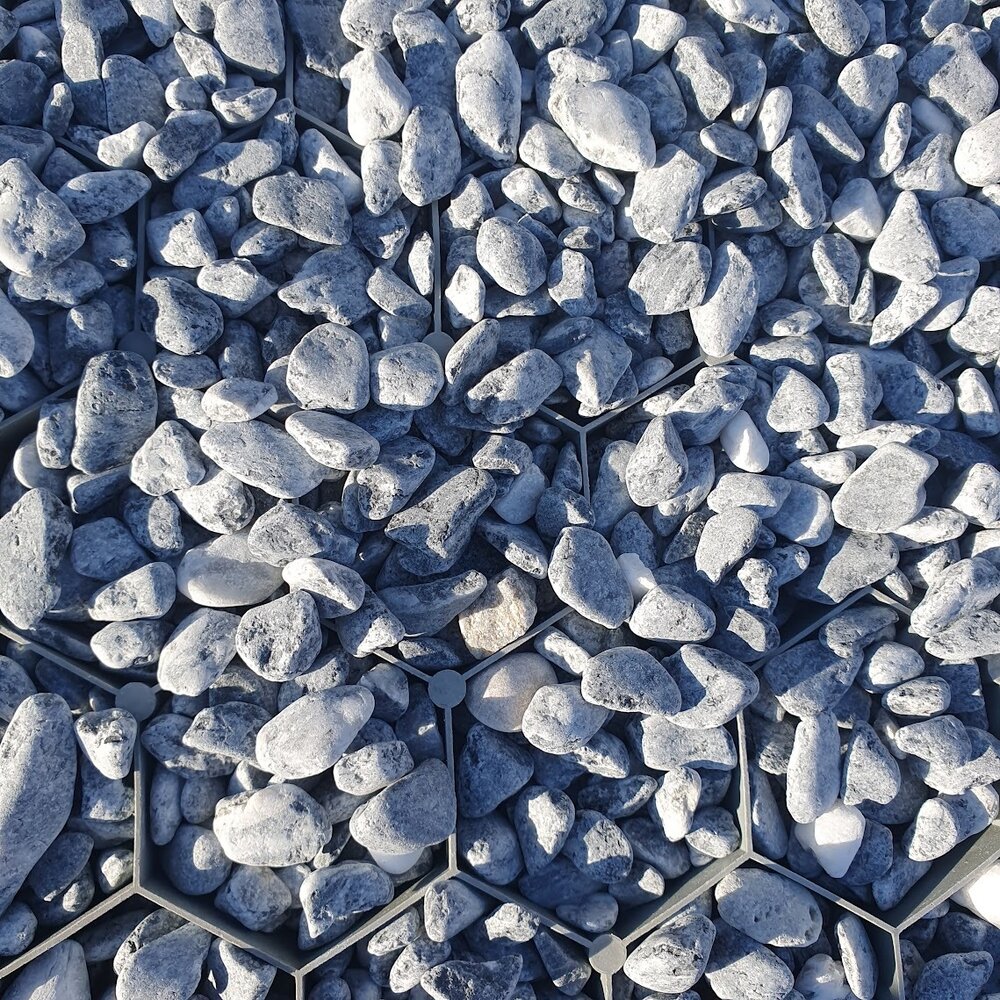

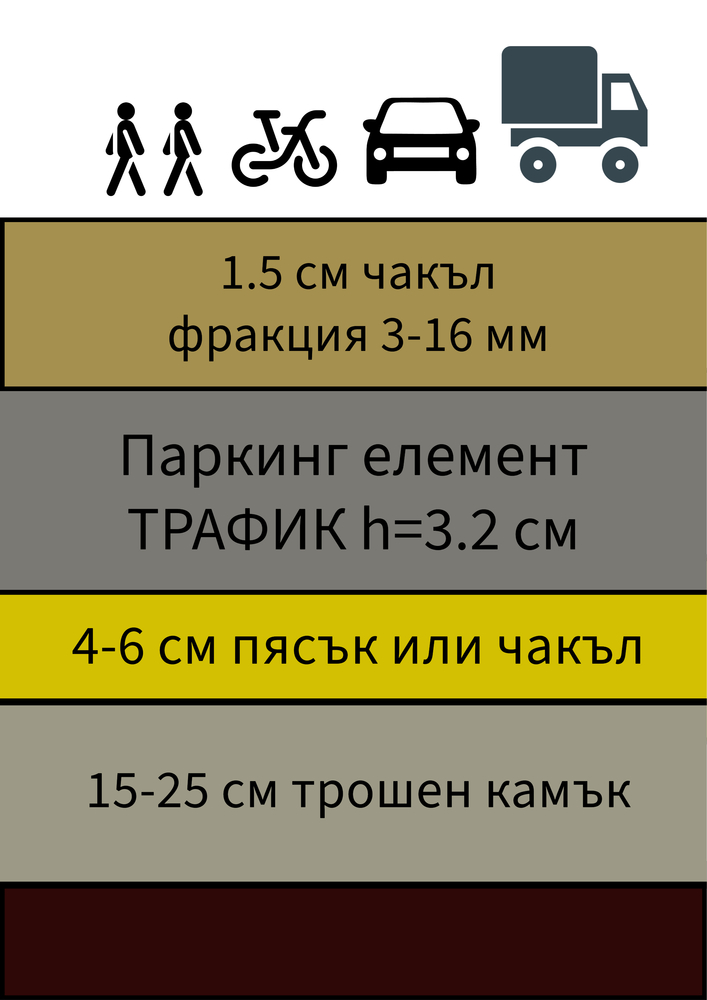

Recommended gravel fraction:

3–16 mm

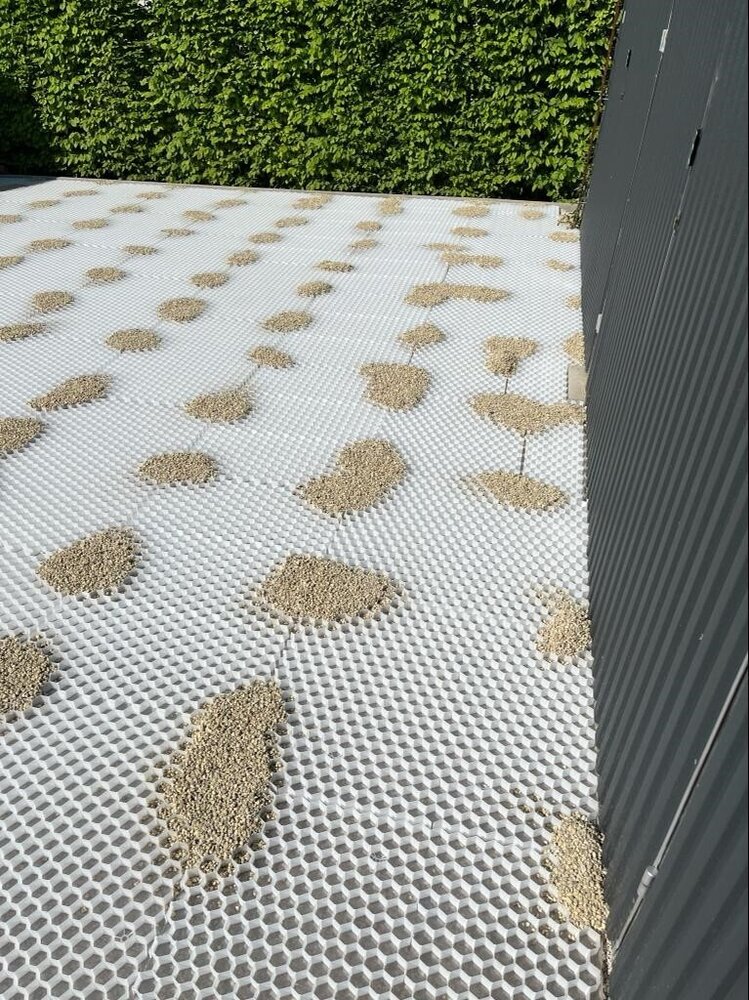

Approximate filling requirement:

• 50 l/m²
• 75 kg/m²
• approx. 13–14 m² per ton of gravel

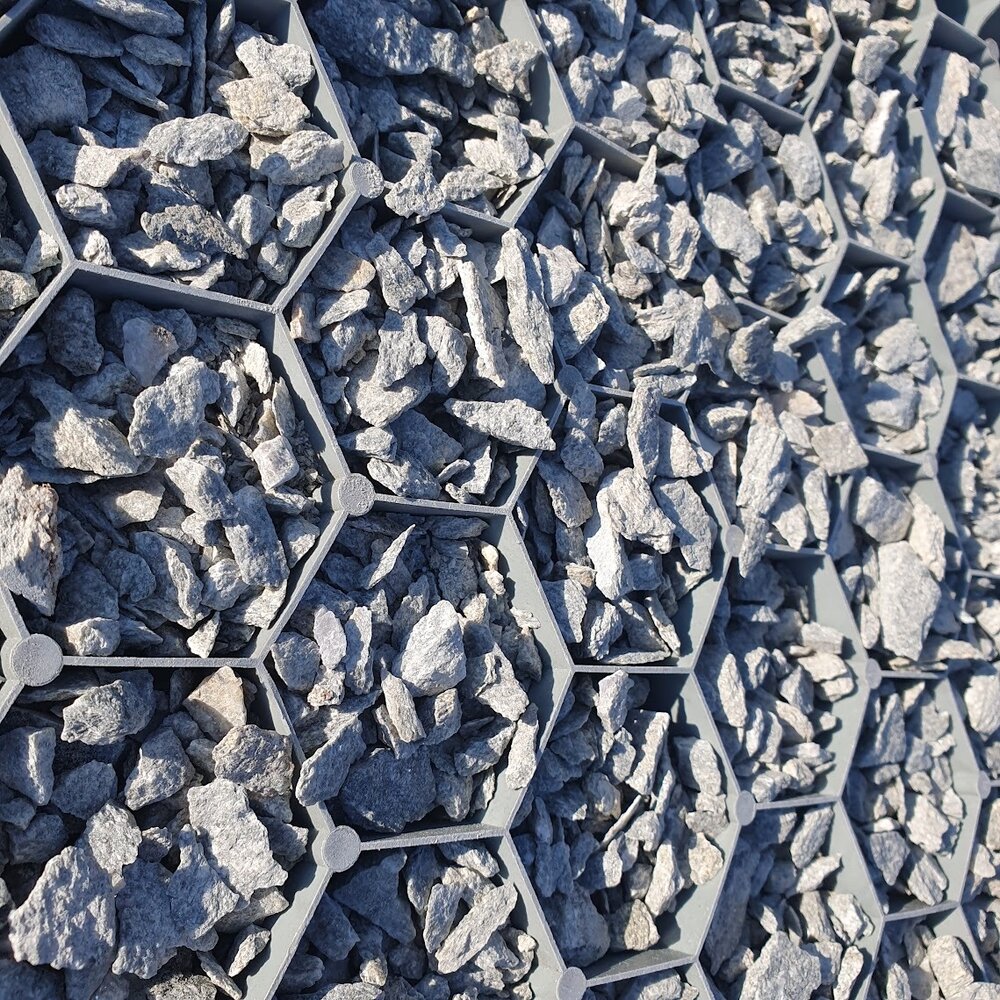

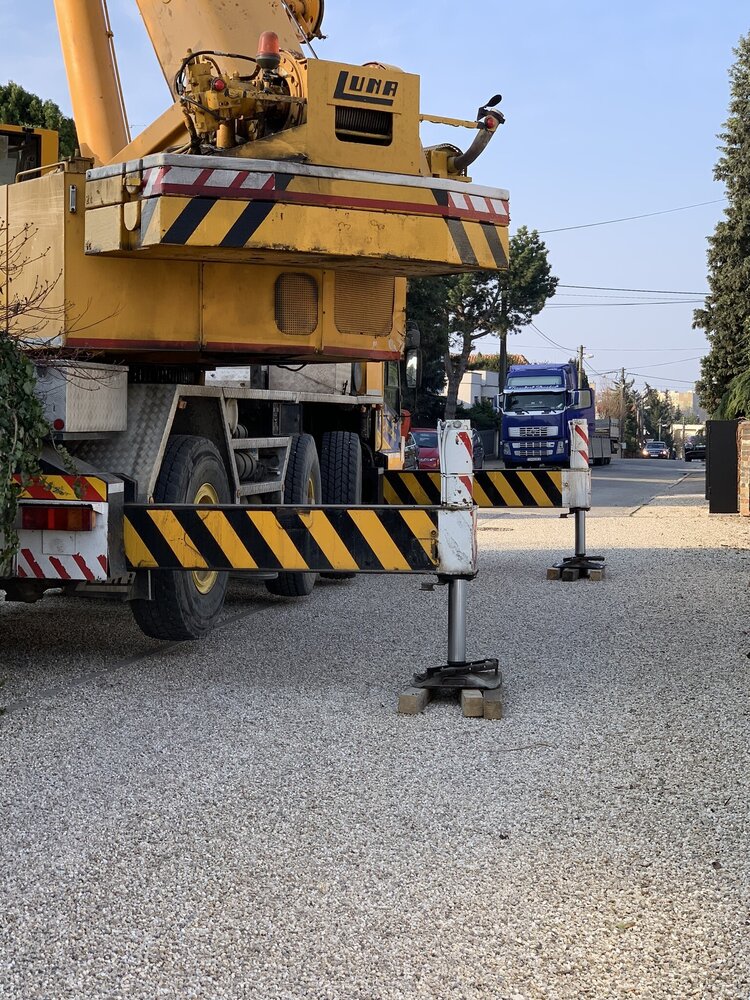

For vehicle traffic, crushed angular stone is recommended for better interlocking and stability.

Advantages

• Price per piece
• Approx. 0.90 m² coverage
• 32 mm height
• Suitable for vehicle traffic

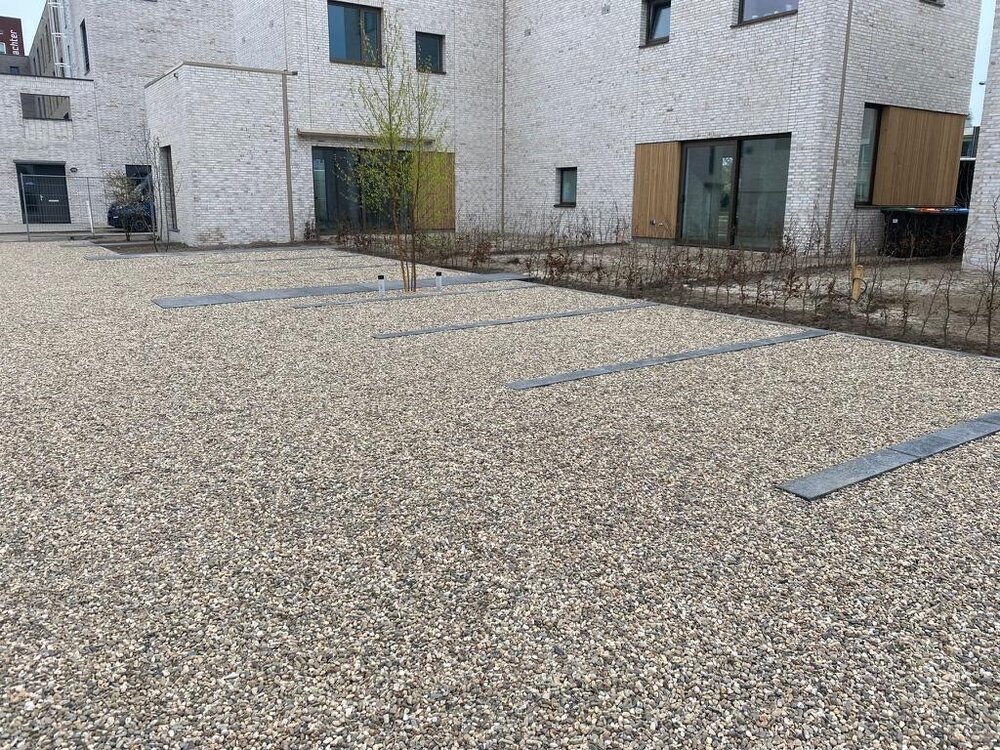

• Suitable for parking areas
• Suitable for driveways
• Suitable for ramps and access roads
• DuPont™ Typar® geotextile
• Recyclable polypropylene
• 42 mm honeycomb cells
• Water-permeable design
• Recommended for 3–16 mm gravel
• UV resistant
• Frost resistant
• Available in white and grey

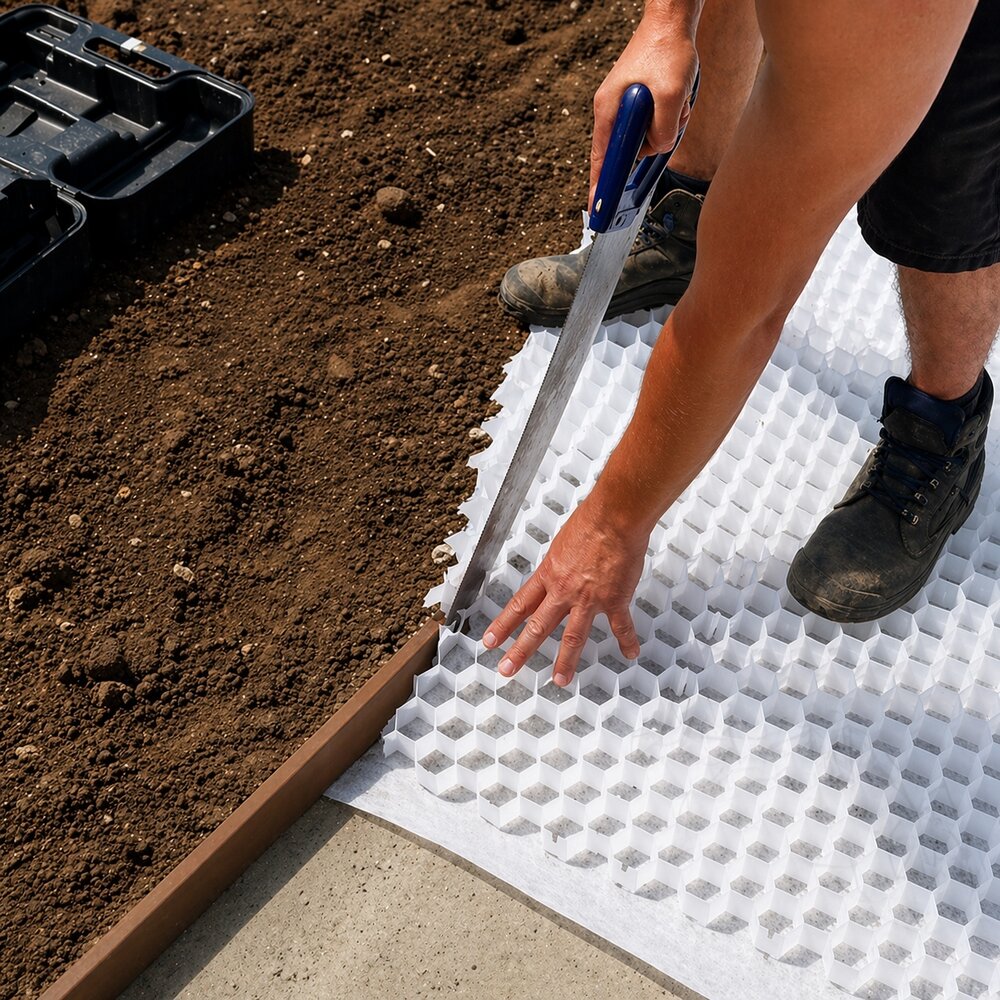

• Easy to cut and adapt
