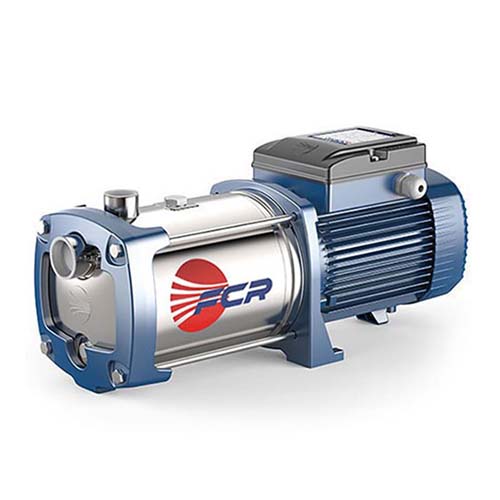

Centrifugal multistage pump Pedrollo FCR 130/6X

Code: 9357

Guarantee: 24

946 € / 1,850.22lv.

PERFORMANCE CHARACTERISTICS:

Flow rate: up to 130 l/min (7.8 m³/h)
Head: up to 97 m

Q (m³/h)	0	0.3	0.6	1.2	2.4	3.6	4.8	6.0	7.8
l/min	0	5	10	20	40	60	80	100	130
H (m)	97	97	96.5	94.5	90	83	74.5	64	46

CONSTRUCTION CHARACTERISTICS:

Diffusers: stainless steel AISI 304
Rear cover: stainless steel AISI 304
Shaft: stainless steel AISI 431
Mechanical seal: graphite - ceramic - NBR

The multistage centrifugal pumps of this type are recommended for clean water and liquids that are non-aggressive to the materials from which the pumps are made. Due to their reliability and quiet operation, these pumps are suitable for domestic use, particularly for automatic water supply in combination with small and medium-sized tanks, automatic pressure maintenance systems, irrigation of crops, gardens, and more. The pumps should be installed indoors or in locations protected from the weather.

Product Specifications

Feature	Description
Maximum head:	97 m
Maximum flow rate:	130 l/min (7.8 m³/h)
Inlet connection:	G 1¼"
Outlet connection:	G 1"
Maximum suction depth:	7 m
Motor
Single-phase or three-phase motor:	Three-phase 230/400 V - 50 Hz
Power (P2):	2.2 kW 3 HP
Rotation speed (rpm):	2900
Insulation class:	F
Protection class:	IP X4
Energy efficiency (three-phase only):	IE3
Construction features and usage
Group:	Horizontal multistage
Pump body:	Stainless steel AISI 304
Impeller:	Noryl
Usage:	Domestic; Public
Limits
Fluid type:	Clean water
Minimum fluid temperature:	-10°C
Maximum fluid temperature:	+40°C
Maximum ambient temperature:	+40°C
Maximum operating pressure:	10 bar
