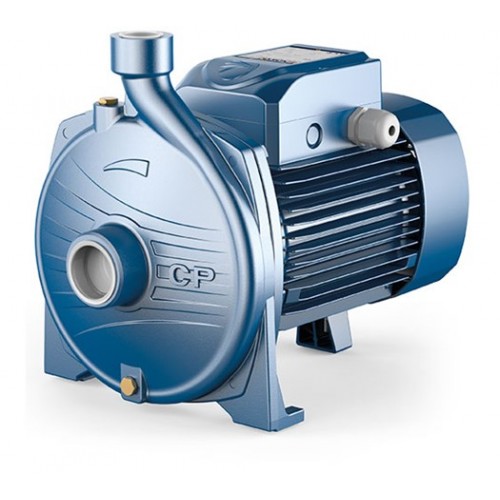

Centrifugal pump Pedrollo CPm 160A single phase

Code: 9948

Guarantee: 24

495 € / 968.14lv.

OPERATING CHARACTERISTICS:

Flow rate up to 240 l/min (14.4 m³/h)
Head up to 43 m

Q (m³/h)	0	3.0	4.5	6.0	7.5	9.0	10.5	12.0	13.2	14.4
l/min	0	50	75	100	125	150	175	200	220	240
H (meters)	43	42	41.5	40.5	39.5	38	35.5	33	30	26

CONSTRUCTION CHARACTERISTICS:

Rear cover: Cast iron
Shaft: Stainless steel AISI 431
Mechanical seal: Ceramic-graphite NBR

Centrifugal pumps of this type are suitable for pumping clean water without abrasive particles, as well as chemically non-aggressive liquids to the materials from which the pump is made. Thanks to their reliability and ease of operation, they are suitable for public, agricultural, and industrial use. They are also suitable for cooling and conditioning systems, irrigation, and more. These pumps should be installed in enclosed spaces or in locations protected from weather conditions.

Main Characteristics

Category	Characteristics
Main Characteristics
Maximum Head	43 m
Maximum Flow Rate	240 l/min (14.4 m³/h)
Inlet Connection	G 1½"
Outlet Connection	G 1"
Maximum Suction Depth	7 m
Motor
Single-phase or Three-phase Motor	Single-phase 230 V - 50 Hz
Power (P2)	2.2 kW 3 HP
Rotational Speed (rpm)	2900
Insulation Class	F
Protection Degree	IP X4
Energy Efficiency (only for three-phase)	IE3
Construction Features and Applications
Group	Centrifugal up to 11 kW
Pump Casing	Cast iron
Impeller	Stainless steel
Applications	Public; Agricultural; Industrial
Limits
Type of Liquid	Clean water
Min. Liquid Temperature	-10°C
Max. Liquid Temperature	+90°C
Max. Ambient Temperature	+40°C
Max. Working Pressure	10 bar
