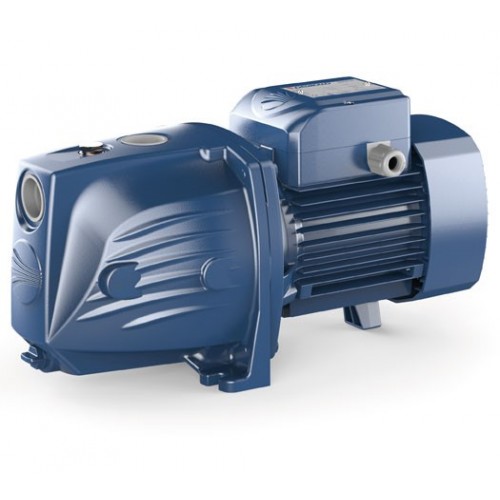

Self-priming pump Pedrollo "JET" JSWm 2BX

Code: 1175

Guarantee: 24

260 € / 508.52lv.

OPERATIONAL CHARACTERISTICS:

Flow Rate: up to 70 l/min (4.2 m³/h)
Head: up to 54 m

Q (m³/h)	0	0.3	0.6	1.2	1.5	1.8	2.4	2.7	3.0	3.6	4.2
l/min	0	5	10	20	25	30	40	45	50	60	70
H (m)	54	51	48	42.5	40	38	33.5	31.5	30	26.5	24

CONSTRUCTIVE CHARACTERISTICS:

Rear Cover: Stainless Steel AISI 304
Injector with Diffuser: Noryl
Shaft: Stainless Steel AISI 431
Mechanical Seal: Ceramic - Graphite - NBR

The JSW self-priming pumps are designed for transferring clean water without abrasive particles and chemically non-aggressive liquids towards the materials the pumps are made of. They are engineered to operate even with air in the pumped liquid. Thanks to their reliability and ease of use, these pumps are suitable for domestic applications, including water transfer in combination with small or medium expansion vessels, garden and plant irrigation, and other uses. Installation of these pumps should be carried out in enclosed spaces or in locations protected from weather conditions.

Characteristic	Description
Maximum Head:	54 m
Maximum Flow Rate:	70 l/min (4.2 m³/h)
Inlet Connection:	G 1"
Outlet Connection:	G 1"
Maximum Suction Depth:	9 m
Single-phase or Three-phase Motor:	Single-phase 230 V - 50 Hz
Power (P2):	0.90 kW (1.25 HP)
Speed (RPM):	2900
Insulation Class:	F
Protection Rating:	IP X4
Type:	Self-priming
Pump Body:	Cast Iron
Impeller:	Technopolymer
Application:	Domestic; Public
Liquid Type:	Clean water
Minimum Liquid Temperature:	-10°C
Maximum Liquid Temperature:	+40°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	7 bar
