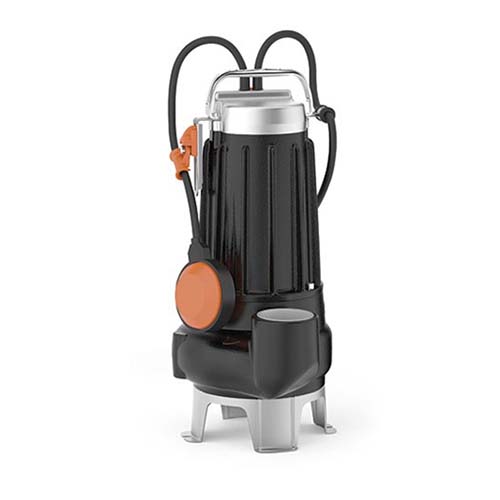

Submersible sewage pump Pedrollo VXC 40/65

Code: 9706

Guarantee: 24

1327 € / 2,595.39lv.

WORKING CHARACTERISTICS:

Flow Rate: Up to 1250 l/min (75 m³/h)
Head: Up to 15.5 m

HYDRAULIC CHARACTERISTICS:

Flow Rate (m³/h)	0	12	18	24	30	36	42	51	60	63	72	75
Liters/min	0	200	300	400	500	600	700	850	1000	1050	1200	1250
Head (m)	15.5	15	14	13	11.6	10.1	8.6	6.3	4.3	3.7	2.3	2

CONSTRUCTION CHARACTERISTICS:

Pump Casing: Cast iron with epoxy coating, ISO 228/1 threaded connection
Motor Cover: Cast iron with epoxy coating
Base: Stainless steel AISI 304
Impeller: Double-channel type made of stainless steel AISI 304
Shaft: Stainless steel AISI 431
Seals: Two mechanical seals with an oil chamber separator:
- Motor side: Ceramic - Graphite - NBR
- Pump side: Silicon carbide - Silicon carbide - NBR

DESCRIPTION AND APPLICATIONS:

The oil chamber motor allows for continuous operation of the pump even when fully submerged. VXC series pumps are recommended for all installations involving the pumping of wastewater containing suspended solids up to 65 mm in diameter. They feature a highly reliable and durable VORTEX impeller with a low risk of clogging. These pumps are made of abrasion-resistant cast iron and are suitable for draining wastewater, water mixed with sludge, fluids containing air or gas, and sewage.

Characteristic	Value
Maximum Head	15.5 m
Maximum Flow Rate	1250 l/min (75.0 m³/h)
Outlet Connection	G 3"
Maximum Submersion Depth	10 m
Maximum Diameter of Solids	Ø65 mm
Motor Type	Three-phase 400 V - 50 Hz
Power (P2)	3 kW (4 HP)
Rotation Speed (RPM)	2900
Insulation Class	F
Protection Class	IP X8
Max. Number of Starts per Hour at Equal Intervals	20
Motor Feature	Minimum submersion depth for continuous operation: 360 mm
Starting Capacitor (for single-phase pumps only)	-
Pump Casing	Cast iron
Impeller	VORTEX type, stainless steel AISI 304
Application	Domestic; Public; Industrial
Cable Length	10 m
Construction Features	Motor in oil bath, two mechanical seals separated by an oil chamber
Built-in Float Switch	No
Fluid Type	Drainage and sewage water
Maximum Fluid Temperature	+40°C
Suction Level from Bottom	75 mm
