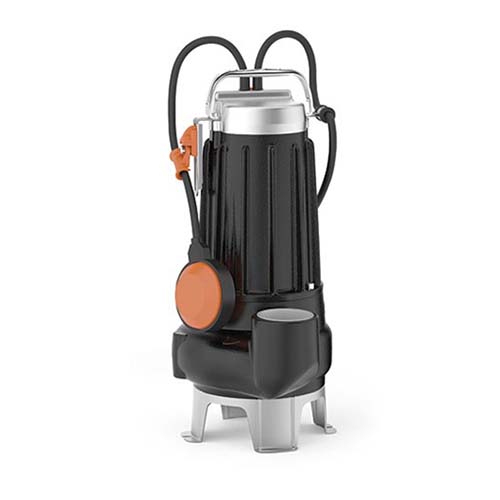

Submersible sewage pump Pedrollo VXCm 15/35

Code: 1545

Guarantee: 24

570 € / 1,114.82lv.

OPERATING CHARACTERISTICS:

Flow Rate: up to 500 l/min (30 m³/h)
Head: up to 14 m

OPERATING LIMITS:

Maximum Immersion Depth: up to 10 m
Maximum Liquid Temperature: up to +40°C
Minimum Pumping Level from Bottom: up to 50 mm
Maximum Particle Size in Suspension: up to 40 mm
Minimum Immersion Depth for Continuous Operation: 280 mm

CONSTRUCTION CHARACTERISTICS:

Pump Casing: Grey cast iron with ISO 228/1 threaded connection
Motor Casing: Cast iron with epoxy coating
Base: Stainless steel AISI 304
Impeller: Stainless steel AISI 304, VORTEX type
Shaft: Stainless steel EN 10088-3-1.4104
Double Seal with Oil Chamber: Ceramic - Graphite - NBR; Silicon carbide - Silicon carbide - NBR
Motor: Single-phase 230 V - 50 Hz
Power: 1.1 kW
HP (Horsepower): 1.5
Connection: G 1½"

MOTOR:

Insulation Class: F
Protection Class: IP X8
Standard Features: External float switch (only for single-phase version); 10 m neoprene power cable “H07 RN-F”

HYDRAULIC CHARACTERISTICS:

Flow Rate (m³/h)	0	3	6	12	18	21	24	27	30
Liters/min.	0	50	100	200	300	350	400	450	500
Head (m)	14	13.5	12.8	11.2	9	7.7	6	4	2

APPLICATIONS:

The VXC series pumps are made of thick-walled cast iron, which provides high strength and resistance to abrasive effects. They are equipped with a VORTEX type impeller made of stainless steel and are recommended for draining water containing solid particles, sewage, and mixtures of water with sludge.

Characteristic	Value
Maximum Head	14 m
Maximum Flow Rate	500 l/min (30 m³/h)
Discharge Connection	G 1½"
Maximum Immersion Depth	10 m
Maximum Particle Size	Ø40 mm
Motor Type	Single-phase 230 V - 50 Hz
Power (P2)	1.1 kW (1.5 HP)
Rotational Speed (rpm)	2900
Insulation Class	F
Protection Class	IP X8
Maximum Number of Starts per Hour at Equal Intervals	20
Motor Feature	Minimum immersion depth for continuous operation: 280 mm
Starting Capacitor (for single-phase pumps only)	Built-in
Pump Casing	Cast iron
Impeller	VORTEX type, stainless steel AISI 304
Usage	Domestic; Public
Cable Length	10 m
Construction Features	Double mechanical seal in oil chamber
Built-in Float Switch	Yes
Liquid Type	Drainage and sewage water
Maximum Liquid Temperature	+40°C
Pumping Level from Bottom	50 mm
