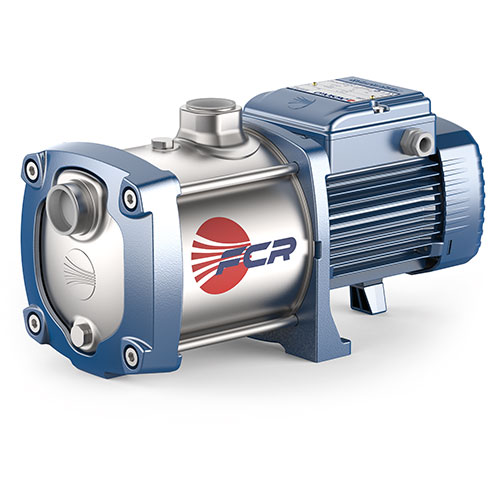

Centrifugal multistage pump Pedrollo FCR 100/5 three-phase

Code: 10006

Guarantee: 24

448 € / 876.21lv.

PERFORMANCE CHARACTERISTICS:

Flow rate: up to 130 l/min (7.8 m³/h)
Head: up to 63 m

Q (m³/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2	7.8
l/min	0	5	10	15	20	25	30	40	50	60	70	80	90	100	110	120	130
H (m)	63	62	61.5	60.5	59.5	58	57	53.5	50.5	46.5	42.5	38	33	28	22	15	8

CONSTRUCTION CHARACTERISTICS:

Impellers: stainless steel AISI 304
Diffusers: Noryl with wear rings
Rear cover: stainless steel AISI 304
Shaft: stainless steel AISI 431
Mechanical seal: graphite - ceramic - NBR

These pumps, characterized by quiet operation and low energy consumption, are ideal for water supply and booster systems, industrial applications, irrigation systems, and more. The multistage centrifugal pumps of this type are designed for clean water and liquids that are chemically non-aggressive to the materials from which they are made. The pumps should be installed in enclosed places or locations protected from weather conditions.

Product Specifications

Feature	Description
Maximum head:	63 m
Maximum flow rate:	130 l/min (7.8 m³/h)
Inlet connection:	G 1"
Outlet connection:	G 1"
Maximum suction depth:	7 m
Motor
Single-phase or three-phase motor:	Three-phase 230/400 V - 50 Hz
Power (P2):	1.1 kW 1.5 HP
Rotation speed (rpm):	2900
Insulation class:	F
Protection class:	IP X4
Energy efficiency (three-phase only):	IE3
Construction features and usage
Group:	Horizontal multistage
Pump body:	Stainless steel AISI 304
Impeller:	Stainless steel AISI 304
Usage:	Domestic; Public
Limits
Fluid type:	Clean water
Minimum fluid temperature:	-10°C
Maximum fluid temperature:	+60°C
Maximum ambient temperature:	+40°C
Maximum operating pressure:	7 bar
