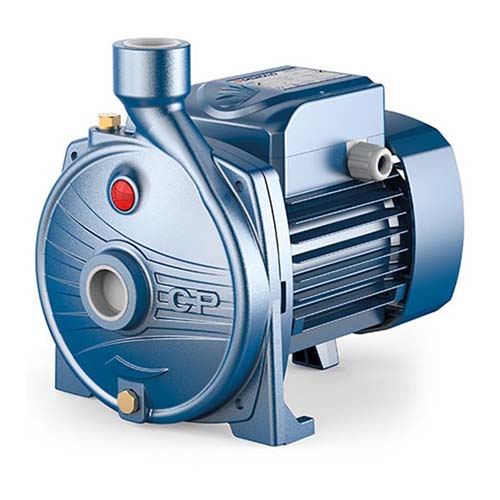

Centrifugal pump Pedrollo CPm 200 single phase

Code: 9283

Guarantee: 24

495 € / 968.14lv.

OPERATING CHARACTERISTICS:

Flow rate up to 150 l/min (9.0 m³/h)
Head up to 56 m

Q (m³/h)	0	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2	7.8	8.4	9.0
l (l/min)	0	30	40	50	60	70	80	90	100	110	120	130	140	150
H (meters)	56	55	54.5	53.5	52	51	49.5	48	46	44.5	42.5	40.5	38.5	36

CONSTRUCTION CHARACTERISTICS:

Back cover: cast iron
Shaft: stainless steel AISI 431
Mechanical seal: ceramic-graphite NBR

The centrifugal pumps of this type are suitable for pumping clean water without abrasive particles, as well as chemically non-aggressive liquids towards the materials from which the pump is made. Thanks to their compactness, reliability, and easy operation, these pumps are suitable for domestic and public use, such as water transport in combination with a small or medium-sized expansion tank, for liquid transfer, and for irrigation of gardens and crops. The installation of these pumps should be carried out indoors or in locations protected from weather conditions.

Main Characteristics

Category	Characteristics
Main Characteristics
Maximum head	56 m
Maximum flow rate	150 l/min (9.0 m³/h)
Inlet connection	G 1¼"
Outlet connection	G 1"
Maximum suction depth	7 m
Motor
Single-phase or three-phase motor	Single-phase 230 V - 50 Hz
Power (P2)	2.2 kW 3 HP
Rotational speed (RPM)	2900
Insulation class	F
Protection rating	IP X4
Construction Features and Usage
Group	Centrifugal 0.25-2.2 KW
Pump body	Cast iron
Impeller	Stainless steel AISI 304
Usage	Domestic; Public
Limits
Type of liquid	Clean water
Minimum liquid temperature	-10°C
Maximum liquid temperature	+90°C
Maximum ambient temperature	+40°C
Maximum working pressure	10 bar
