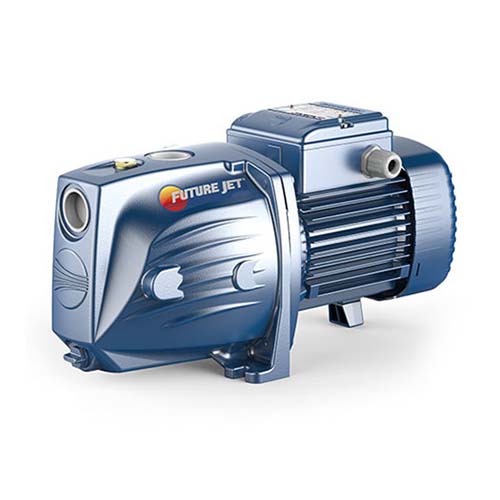

Self-priming pump Pedrollo FUTURE JETm 2C

Code: 9582

Guarantee: 24

246 € / 481.13lv.

OPERATIONAL CHARACTERISTICS:

Flow Rate: up to 120 l/min (7.2 m³/h)
Head: up to 50 m

Q (m³/h)	0	0.3	0.6	1.2	2.4	3.6	4.8	5.4	5.7	6.0	7.2
l/min	0	5	10	20	40	60	80	90	95	100	120
H (m)	50	47	43.8	38.3	29	22	16.2	13.5	12.3	11	6

CONSTRUCTIVE FEATURES:

Back Cover: Stainless steel AISI 304
Injector with Diffuser: Noryl
Shaft: Stainless steel AISI 431
Mechanical Seal: Ceramic - Graphite - NBR

ADVANTAGES OF FUTURE JET OVER CLASSIC JET PUMPS:

High hydraulic efficiency
Reduced energy consumption by up to 50%
Reduced turbulence for much more stable pump operation
Better power/flow ratio

The FUTURE JET self-priming pumps are suitable for transferring clean water without abrasive particles, as well as chemically non-aggressive liquids with respect to the materials the pumps are made from. They are designed to operate even in the presence of air in the pumped liquid. Thanks to their reliability and ease of use, these pumps are recommended for domestic use, including water transfer in combination with small or medium expansion vessels, irrigation of gardens and crops, and other applications. Installation of these pumps should be carried out in enclosed spaces or in areas protected from atmospheric influences.

Characteristic	Description
Maximum Head:	50 m
Maximum Flow Rate:	120 l/min (7.2 m³/h)
Inlet Connection:	G 1"
Outlet Connection:	G 1"
Maximum Suction Depth:	9 m
Single-Phase or Three-Phase Motor:	Single-phase 230 V - 50 Hz
Power (P2):	0.75 kW (1 HP)
Speed (RPM):	2900
Insulation Class:	F
Protection Rating:	IP X4
Group:	Self-priming
Pump Body:	Cast iron
Impeller:	Stainless steel AISI 304
Usage:	Domestic
Type of Liquid:	Clean water
Minimum Liquid Temperature:	-10°C
Maximum Liquid Temperature:	+40°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	6 bar
