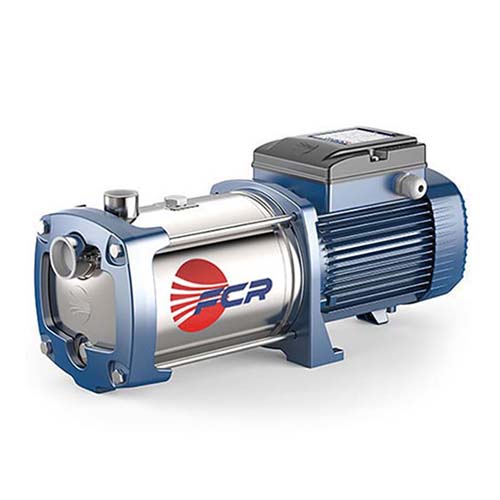

Centrifugal multistage pump Pedrollo FCR 90/6

Code: 9358

Guarantee: 24

893 € / 1,746.56lv.

OPERATING CHARACTERISTICS:

Flow rate: up to 90 l/min (5.4 m³/h)
Head: up to 96 m

Q (m³/h)	0	0.3	0.6	1.2	2.4	3.6	4.8	5.4
l/min	0	5	10	20	40	60	80	90
H (meters)	96	94	92	88	80	69	53	45

CONSTRUCTION FEATURES:

Diffusers: Stainless steel AISI 304
Back cover: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical seal: Graphite-ceramic-NBR

Multistage centrifugal pumps of this type are recommended for pumping clean water and liquids that are not chemically aggressive to the materials from which the pumps are made. They offer reliability and quiet operation, making them suitable for domestic applications, such as automatic water supply in combination with small and medium-sized reservoirs, automatic pressure maintenance systems, and irrigation of crops and gardens. The pumps should be installed in enclosed spaces or places protected from atmospheric influences.

Key Specifications

Category	Characteristics
Maximum Head	96 m
Maximum Flow Rate	90 l/min (5.4 m³/h)
Inlet Connection	G 1¼"
Outlet Connection	G 1"
Maximum Suction Depth	7 m
Motor
Single-phase or Three-phase Motor	Three-phase 230/400 V - 50 Hz
Power (P2)	1.5 kW 2 HP
Rotation Speed	2900 RPM
Insulation Class	F
Protection Rating	IP X4
Energy Efficiency (three-phase only)	IE3
Construction Features and Usage
Group	Horizontal Multistage
Pump Casing	Stainless Steel AISI 304
Impeller	Stainless Steel AISI 304
Usage	Domestic; Public
Limits
Type of Liquid	Clean Water
Min. Liquid Temperature	-10°C
Max. Liquid Temperature	+90°C
Max. Ambient Temperature	+40°C
Max. Operating Pressure	11 bar
