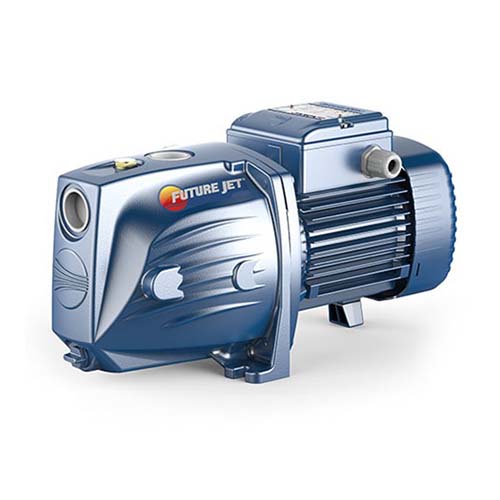

Self-priming pump Pedrollo FUTURE JETm 1AX

Code: 9773

Guarantee: 24

227 € / 443.97lv.

OPERATIONAL CHARACTERISTICS:

Flow Rate: up to 100 l/min (6.0 m³/h)
Head: up to 48 m

Q (m³/h)	0	0.3	0.6	1.2	2.4	3.6	4.8	5.4	5.7	6.0
l/min	0	5	10	20	40	60	80	90	95	100
H (m)	48	44	40.6	34.5	25.2	18.7	13.7	11.4	10.2	9

CONSTRUCTIVE CHARACTERISTICS:

Rear Cover: stainless steel AISI 304
Injector with Diffuser: Noryl
Shaft: stainless steel AISI 431
Mechanical Seal: ceramic - graphite - NBR

ADVANTAGES OF FUTURE JET OVER CLASSIC JET PUMPS:

High hydraulic efficiency
Reduced energy consumption by up to 50%
Reduced turbulence for much more stable pump operation
Better power/flow ratio

The FUTURE JET self-priming pumps are suitable for transferring clean water without abrasive particles, as well as chemically non-aggressive liquids to the materials from which the pumps are made. They are designed to operate even when air is present in the pumped liquid. Due to their reliability and ease of use, these pumps are recommended for domestic applications, including water transfer in combination with small or medium expansion tanks, garden and plantation irrigation, and other applications. The installation of these pumps should be carried out in enclosed spaces or areas protected from atmospheric influences.

Characteristic	Description
Maximum Head:	48 m
Maximum Flow Rate:	100 l/min (6.0 m³/h)
Inlet Connection:	G 1"
Outlet Connection:	G 1"
Maximum Suction Depth:	9 m
Single-phase or Three-phase Motor:	Single-phase 230 V - 50 Hz
Power (P2):	0.55 kW (0.75 HP)
Rotation Speed (rpm):	2900
Insulation Class:	F
Protection Rating:	IP X4
Group:	Self-priming
Pump Body:	Cast iron
Impeller:	Technopolymer
Usage:	Domestic
Type of Liquid:	Clean water
Minimum Liquid Temperature:	-10°C
Maximum Liquid Temperature:	+40°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	6 bar
