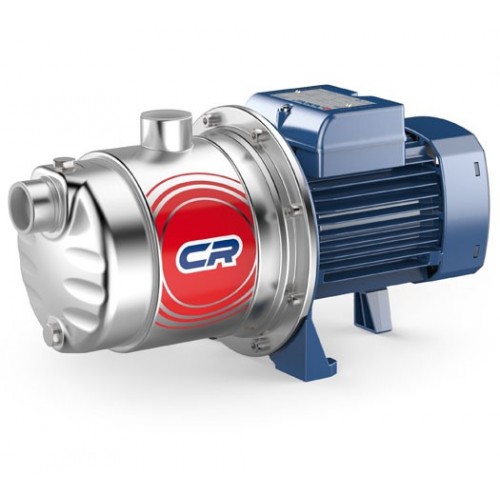

Centrifugal multistage pump Pedrollo 2CRm 80X

Code: 4478

Guarantee: 24

222.92 € / 435.99lv.

OPERATIONAL CHARACTERISTICS:

Flow Rate up to 70 l/min (4.2 m³/h)
Head up to 27 m

Q (m³/hour)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2
l (l/min)	0	5	10	15	20	25	30	40	50	60	70
H (meters)	27	26	25	24	22.5	21	20	16.5	13	9	5

CONSTRUCTIVE CHARACTERISTICS:

Diffusers: Noryl with wear-resistant rings
Back Cover: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical Seal: Ceramic-graphite NBR

Multi-stage centrifugal pumps of this type are intended for use with clean water and liquids that are chemically non-aggressive to the materials from which the pumps are made. They provide reliability and quiet operation, making them suitable for domestic applications, such as automatic water supply for small and medium reservoirs, pressure maintenance units, irrigation of crops, gardens, and more. The pumps should be installed in enclosed spaces or in areas protected from atmospheric conditions.

Category	Specifications
Maximum Head	27 m
Maximum Flow Rate	70 l/min (4.2 m³/h)
Inlet Connection	G 1"
Outlet Connection	G 1"
Maximum Suction Depth	7 m
Motor	Single-phase 230 V - 50 Hz
Power (P2)	0.37 kW (0.50 HP)
Speed (RPM)	2900
Insulation Class	F
Protection Degree	IP X4
Type	Horizontal Multi-stage
Pump Body	Stainless Steel AISI 304
Impeller	Noryl
Usage	Domestic; Public
Liquid Type	Clean Water
Min. Liquid Temperature	-10°C
Max. Liquid Temperature	+40°C
Max. Ambient Temperature	+40°C
Max. Operating Pressure	7 bar
