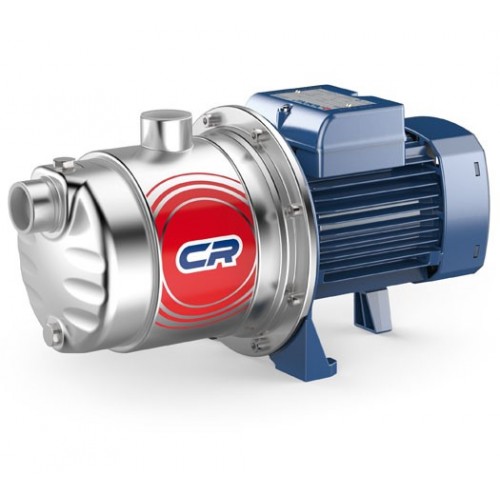

Centrifugal multistage pump Pedrollo 3CR 80X

Code: 443

Guarantee: 24

272 € / 531.99lv.

OPERATIONAL CHARACTERISTICS:

Flow rate up to 80 l/min (4.8 m³/h)
Head up to 40 m

Q (m³/hour)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8
l (l/min)	0	5	10	15	20	25	30	40	50	60	70	80
H (meters)	40	38	37	36	34.5	33	31	27	22.5	17	11	5

CONSTRUCTIVE CHARACTERISTICS:

Diffusers: Noryl with abrasion-resistant rings
Back cover: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical seal: Ceramic-graphite NBR

These multi-stage centrifugal pumps are designed for use with clean water and liquids that are chemically non-aggressive to the materials from which the pumps are made. They offer reliability and quiet operation, making them suitable for domestic applications such as automatic water supply for small and medium-sized tanks, pressure-maintaining automatic units, irrigation of crops, gardens, etc. The pumps should be installed in enclosed spaces or places protected from atmospheric influences.

Category	Specifications
Maximum Head	40 m
Maximum Flow Rate	80 l/min (4.8 m³/h)
Inlet Connection	G 1"
Outlet Connection	G 1"
Max. Suction Depth	7 m
Motor	Three-phase 230/400 V - 50 Hz
Power (P2)	0.45 kW (0.60 HP)
Rotation Speed (rpm)	2900
Insulation Class	F
Protection Rating	IP X4
Energy Efficiency (for three-phase only)	IE2
Group	Horizontal multi-stage
Pump Body	Stainless Steel AISI 304
Impeller	Noryl
Application	Domestic; Public
Liquid Type	Clean Water
Min. Liquid Temperature	-10°C
Max. Liquid Temperature	+40°C
Max. Ambient Temperature	+40°C
Max. Operating Pressure	7 bar
