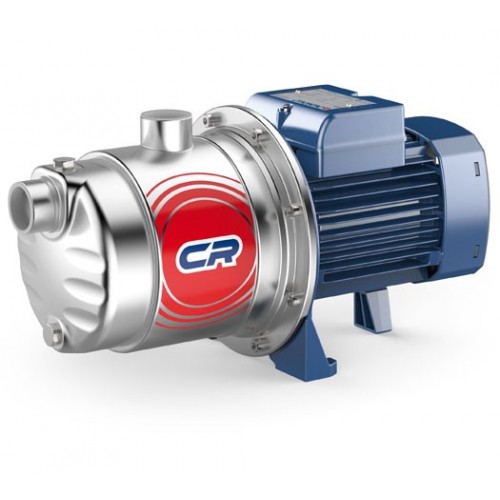

Centrifugal multistage pump Pedrollo 3CRm 100X

Code: 444

Guarantee: 24

270 € / 528.07lv.

PERFORMANCE CHARACTERISTICS:

Flow Rate: up to 120 l/min (7.2 m³/h)
Head: up to 38 m

Q (m³/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8	5.44	6.0	6.6	7.2
Flow (l/min)	0	5	10	15	20	25	30	40	50	60	70	80	90	100	110	120
Head (meters)	38	37	36	35	34.5	33.5	33	31	28	26	23	20	17	13.5	10	5

CONSTRUCTIVE CHARACTERISTICS:

Diffusers: Made from Noryl with wear-resistant rings, providing durability and reliability during operation.
Rear Cover: Stainless steel AISI 304, offering excellent corrosion resistance.
Shaft: Stainless steel AISI 431, ensuring long pump life and reliability.
Mechanical Seal: Ceramic-graphite NBR, providing high wear resistance and long-term reliability.

This type of multi-stage centrifugal pump is designed for pumping clean water and liquids that are not chemically aggressive to the materials from which the pump is made. They are ideal for residential and public applications due to their reliability and quiet operation. The pumps can be effectively used for automatic water supply to small and medium tanks, automatic pressure maintenance systems, as well as irrigation of crops and gardens. For optimal performance, the pumps should be installed in enclosed spaces or in protected areas from environmental conditions.

Category	Specifications
Maximum Head	38 m
Maximum Flow Rate	120 l/min (7.2 m³/h)
Inlet Connection	G 1"
Outlet Connection	G 1"
Max. Suction Depth	7 m
Single-phase or Three-phase Motor	Single-phase 230 V - 50 Hz
Power (P2)	0.55 kW (0.75 HP)
Speed (RPM)	2900
Insulation Class	F
Protection Degree	IP X4
Group	Horizontal Multi-stage
Pump Body	Stainless Steel AISI 304
Impeller	Noryl
Usage	Domestic; Public
Liquid Type	Clean Water
Min. Liquid Temperature	-10°C
Max. Liquid Temperature	+40°C
Max. Ambient Temperature	+40°C
Max. Operating Pressure	7 bar
