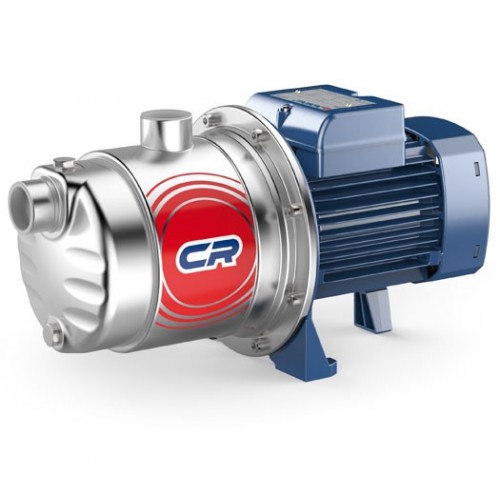

Centrifugal multistage pump Pedrollo 3CRm 80X

Code: 445

Guarantee: 24

250 € / 488.96lv.

OPERATING CHARACTERISTICS:

Flow rate up to 80 l/min (4.8 m³/h)
Head up to 40 m

Q (m³/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8
Flow (l/min)	0	5	10	15	20	25	30	40	50	60	70	80
Head (meters)	40	38	37	36	34.5	33	31	27	22.5	17	11	5

CONSTRUCTION CHARACTERISTICS:

Diffusers: Noryl with wear-resistant rings
Rear cover: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical seal: Ceramic-graphite NBR

Multistage centrifugal pumps of this type are ideal for clean water and fluids that are non-corrosive to the pump materials. They are designed to provide reliability and quiet operation, making them an excellent choice for domestic needs. They are suitable for automatic water supply to small and medium reservoirs, automatic pressure maintenance systems, irrigation of crops and gardens. These pumps should be installed in enclosed spaces or in locations protected from atmospheric conditions.

Category	Specifications
Maximum Head	40 m
Maximum Flow Rate	80 l/min (4.8 m³/h)
Inlet Connection	G 1"
Outlet Connection	G 1"
Maximum Suction Depth	7 m
Motor	Single-phase 230 V - 50 Hz
Power (P2)	0.45 kW (0.60 HP)
Speed (RPM)	2900
Insulation Class	F
Protection Rating	IP X4
Type	Horizontal multistage
Pump Body	Stainless steel AISI 304
Impeller	Noryl
Usage	Domestic; Public
Fluid Type	Clean water
Min. Fluid Temperature	-10°C
Max. Fluid Temperature	+40°C
Max. Ambient Temperature	+40°C
Max. Operating Pressure	7 bar
