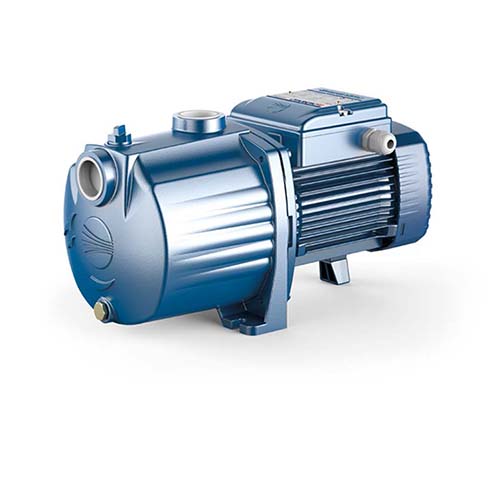

Centrifugal multistage pump Pedrollo 4CPm 100

Code: 469

Guarantee: 24

301 € / 588.70lv.

OPERATIONAL CHARACTERISTICS:

Flow rate up to 130 l/min (7.8 m³/h)
Head up to 50 m

Q (m³/hour)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2	7.8
l (l/min)	0	5	10	15	20	25	30	40	50	60	70	80	90	100	110	120	130
H (meters)	50	50	49	48	47	46	45	42	39.5	37	34	30.5	26.5	22	17	11	5

CONSTRUCTION FEATURES:

Diffusers: Noryl with wear-resistant rings
Rear cover: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical seal: Ceramic-graphite NBR

This type of multi-stage centrifugal pump is suitable for use with clean water and fluids that are chemically non-aggressive to the materials from which the pumps are made. They offer reliability and quiet operation, making them ideal for domestic applications, such as automatic water supply for small and medium-sized tanks, automatic pressure maintenance units, irrigation of crops, gardens, and more. The pumps should be installed in enclosed spaces or in places protected from atmospheric influences.

Category	Specifications
Maximum Head	50 m
Maximum Flow Rate	130 l/min (7.8 m³/h)
Inlet Connection	G 1"
Outlet Connection	G 1"
Max. Suction Depth	7 m
Motor	Three-phase 230/400 V - 50 Hz
Power (P2)	0.75 kW (1 HP)
Rotation Speed (RPM)	2900
Insulation Class	F
Protection Rating	IP X4
Group	Horizontal multi-stage
Pump Body	Cast iron
Impeller	Noryl
Usage	Domestic
Fluid Type	Clean water
Min. Fluid Temperature	-10°C
Max. Fluid Temperature	+40°C
Max. Ambient Temperature	+40°C
Max. Operating Pressure	6 bar
