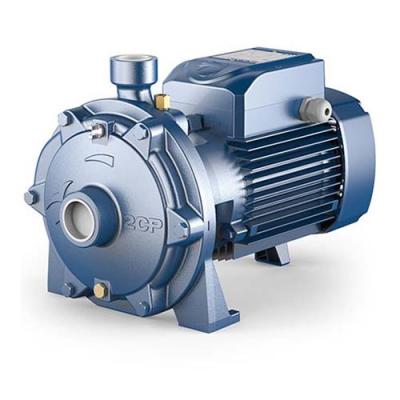

Centrifugal pump with two impellers Pedrollo 2CP 25/130

Code: 402

Guarantee: 24

344 € / 672.81lv.

PERFORMANCE CHARACTERISTICS:

Flow rate up to 100 l/min (6.0 m³/h)
Head up to 42 m

Q (m³/h)	0	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0
l/min	0	20	30	40	50	60	70	80	90	100
H (m)	42	39	37	34	31	28.5	25.5	22	18	15

CONSTRUCTION CHARACTERISTICS:

Rear cover: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical seal: Ceramic-graphite-NBR

Centrifugal pumps of this series are suitable for transferring clean water without abrasive particles and chemically non-aggressive liquids towards the materials from which the pumps are made. The high efficiency and wide application range of these water pumps make them suitable for use in domestic, civil, and industrial sectors, particularly for transporting water in combination with expansion vessels for maintaining pressure in the water supply network and fire-fighting systems. The installation of these pumps should be carried out in enclosed spaces or locations protected from weather conditions.

Main Characteristics

Category	Characteristics
Maximum head	42 m
Maximum flow rate	100 l/min (6 m³/h)
Inlet connection	G 1¼"
Outlet connection	G 1"
Maximum suction depth	7 m
Motor
Single-phase or three-phase motor	Three-phase 230/400 V - 50 Hz
Power (P2)	0.75 kW 1 HP
Rotational speed (rpm)	2900
Insulation class	F
Protection rating	IP X4
Energy efficiency (for three-phase)	IE3
Construction features and use
Group	Centrifugal with two impellers
Pump body	Cast iron
Impeller	Stainless steel AISI 304
Usage	Domestic; Public; Industrial
Limits
Fluid type	Clean water
Min. fluid temperature	-10°C
Max. fluid temperature	+90°C
Max. ambient temperature	+40°C
Max. working pressure	6 bar
