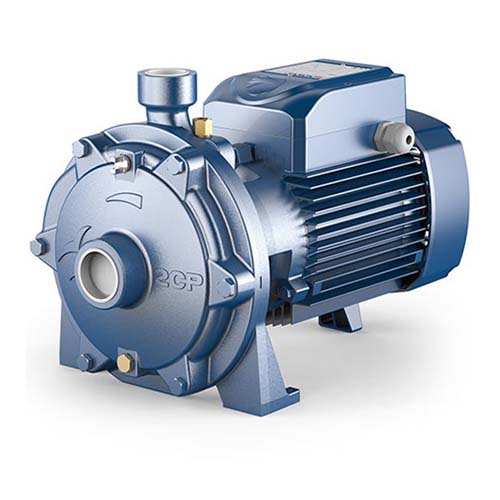

Centrifugal pump with two impellers Pedrollo 2CP 25/16B

Code: 409

Guarantee: 24

596 € / 1,165.67lv.

OPERATIONAL CHARACTERISTICS:

Flow rate up to 140 l/min (8.4 m³/h)
Head up to 58 m

Q (m³/hour)	0	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2	8.4
Flow (l/min)	0	20	30	40	50	60	70	80	90	100	110	120	140
Head (m)	58	56	55	54	53	51	49	47	45	43	40	37	30

CONSTRUCTION CHARACTERISTICS:

Shaft: Stainless steel AISI 431
Mechanical seal: Graphite-ceramic-NBR

The centrifugal pumps in this series are designed for transporting clean water, free from abrasive particles and chemically non-aggressive liquids to the materials from which the pumps are made. They offer high efficiency and a wide range of applications, making them suitable for use in residential, municipal, and industrial environments. They are particularly well-suited for transporting water in combination with expansion vessels to maintain pressure in water supply networks and in fire protection systems. The pumps should be installed in enclosed spaces or in locations protected from atmospheric conditions.

Category	Specifications
Maximum Head	58 m
Maximum Flow Rate	140 l/min (8.4 m³/h)
Inlet Connection	G 1¼"
Outlet Connection	G 1"
Maximum Suction Depth	7 m
Single-phase or Three-phase Motor	Three-phase 230/400 V - 50 Hz
Power (P2)	1.5 kW 2 HP
Speed (RPM)	2900
Insulation Class	F
Protection Rating	IP X4
Energy Efficiency (Three-phase only)	IE3
Type	Centrifugal with two impellers
Pump Casing	Cast Iron
Impeller	Brass
Usage	Domestic; Public; Industrial
Liquid Type	Clean water
Min. Liquid Temperature	-10°C
Max. Liquid Temperature	+90°C
Max. Ambient Temperature	+40°C
Max. Working Pressure	10 bar
