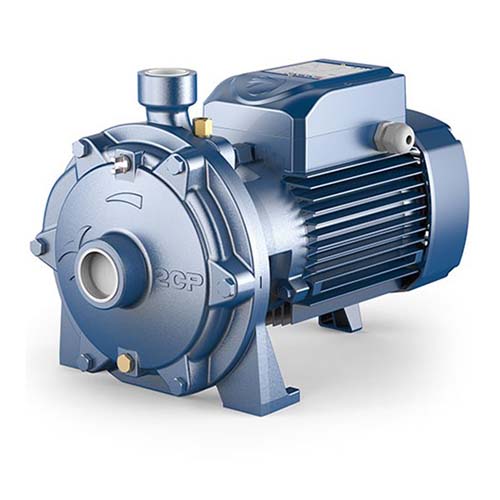

Centrifugal pump with two impellers Pedrollo 2CPm 25/130

Code: 423

Guarantee: 24

321 € / 627.82lv.

OPERATING CHARACTERISTICS:

Flow rate up to 100 l/min (6.0 m³/h)
Head up to 42 m

Q (m³/h)	0	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0
l/min	0	20	30	40	50	60	70	80	90	100
H (meters)	42	39	37	34	31	28.5	25.5	22	18	15

CONSTRUCTION CHARACTERISTICS:

Rear cover: stainless steel AISI 304
Shaft: stainless steel AISI 431
Mechanical seal: ceramic-graphite-NBR

The centrifugal pumps in this series are suitable for transferring clean water without abrasive particles and chemically non-aggressive liquids to the materials from which the pumps are made. Their high efficiency and versatility make them suitable for a wide range of applications in households, civil sectors, and industries, especially for transporting water in combination with expansion tanks to maintain pressure in water supply systems and fire protection systems. These pumps should be installed in enclosed spaces or locations protected from atmospheric influences.

Specifications

Category	Features
Maximum head	42 m
Maximum flow rate	100 l/min (6 m³/h)
Inlet connection	G 1¼"
Outlet connection	G 1"
Maximum suction depth	7 m
Engine
Phase type	Single-phase 230 V - 50 Hz
Power (P2)	0.75 kW 1 HP
Rotational speed (RPM)	2900
Insulation class	F
Protection rating	IP X4
Construction features and use
Group	Centrifugal with two impellers
Pump body	Cast iron
Impeller	Stainless steel AISI 304
Applications	Domestic; Public; Industrial
Limits
Liquid type	Clean water
Minimum liquid temperature	-10°C
Maximum liquid temperature	+90°C
Maximum ambient temperature	+40°C
Maximum operating pressure	6 bar
