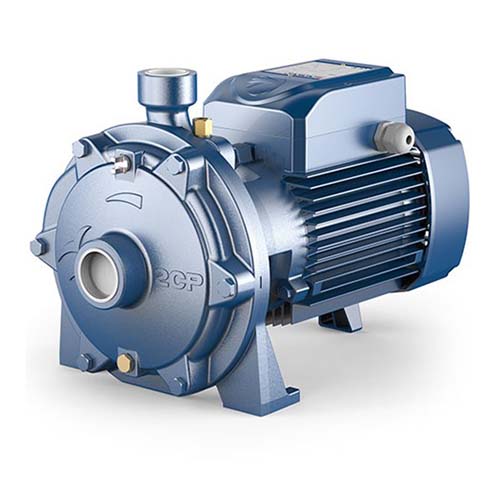

Centrifugal pump with two impellers Pedrollo 2CP 25/16C

Code: 406

Guarantee: 24

494.93 € / 968.00lv.

PERFORMANCE CHARACTERISTICS:

Flow rate up to 120 l/min (7.2 m³/h)
Head up to 47 m

Q (m³/h)	0	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2
l/min	0	20	30	40	50	60	70	80	90	100	110	120
H (meters)	47	46	45	44	42	40	38	35	33	30	27	24

CONSTRUCTION CHARACTERISTICS:

Shaft: stainless steel AISI 431
Mechanical seal: graphite-ceramic-NBR

Centrifugal pumps from this series are suitable for transferring clean water, free of abrasive particles and chemically non-aggressive liquids to the materials from which the pumps are made. The high efficiency and wide application range of these water pumps in various fields of work allow their use in households, civil sectors, and industries. They are particularly suitable for water transportation in combination with expansion vessels for pressure maintenance in water supply networks and in firefighting systems. Installation of these pumps should be done indoors or in places protected from atmospheric influences.

Main Characteristics

Category	Specifications
Maximum Head	47 m
Maximum Flow Rate	120 l/min (7.2 m³/h)
Inlet Connection	G 1¼"
Outlet Connection	G 1"
Maximum Suction Depth	7 m
Motor
Single-Phase or Three-Phase	Three-phase 230/400 V - 50 Hz
Power (P2)	1.1 kW 1.5 HP
Rotational Speed (rpm)	2900
Insulation Class	F
Protection Degree	IP X4
Energy Efficiency (three-phase only)	IE3
Construction Features and Usage
Type	Centrifugal with two impellers
Pump Body	Cast iron
Impeller	Brass
Usage	Domestic; Public; Industrial
Limits
Liquid Type	Clean water
Min. Liquid Temperature	-10°C
Max. Liquid Temperature	+90°C
Max. Ambient Temperature	+40°C
Max. Operating Pressure	10 bar
