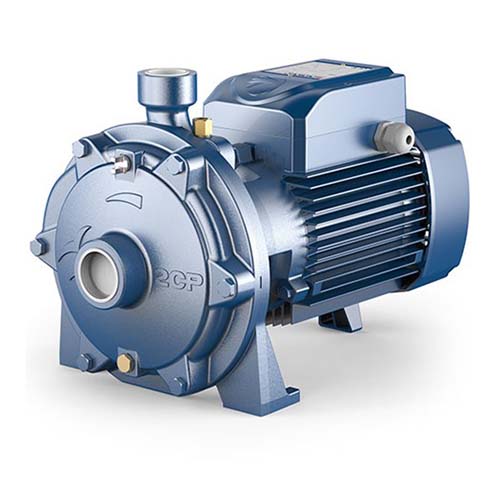

Centrifugal pump with two impellers Pedrollo 2CP 25/14B

Code: 404

Guarantee: 24

532 € / 1,040.50lv.

OPERATING CHARACTERISTICS:

Flow rate up to 100 l/min (6.0 m³/h)
Head up to 54 m

Q (m³/h)	0	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0
l/min	0	20	30	40	50	60	70	80	90	100
H (meters)	54	52	50	47.5	44.5	41	37	33	28	22

CONSTRUCTION CHARACTERISTICS:

Shaft: stainless steel AISI 431
Mechanical seal: graphite-ceramic-NBR

Centrifugal pumps of this series are suitable for transferring clean water without abrasive particles and chemically non-aggressive liquids to the materials from which the pumps are made. The high efficiency and wide application possibilities of these water pumps in various fields allow their use in households, the civil sector, and industry. They are particularly suitable for transporting water in combination with expansion tanks to maintain pressure in the water supply network and in fire-fighting systems. These pumps should be installed in enclosed areas or places protected from weather conditions.

Main Characteristics

Category	Specifications
Maximum Head	54 m
Maximum Flow Rate	100 l/min (6 m³/h)
Inlet Connection	G 1¼"
Outlet Connection	G 1"
Maximum Suction Depth	7 m
Motor
Single-phase or Three-phase Motor	Three-phase 230/400 V - 50 Hz
Power (P2)	1.1 kW 1.5 HP
Rotational Speed (rpm)	2900
Insulation Class	F
Protection Degree	IP X4
Energy Efficiency (for three-phase)	IE3
Construction Features and Applications
Group	Centrifugal with two impellers
Pump Body	Cast iron
Impeller	Brass
Applications	Domestic; Public; Industrial
Limits
Fluid Type	Clean water
Min. Fluid Temperature	-10°C
Max. Fluid Temperature	+90°C
Max. Ambient Temperature	+40°C
Max. Operating Pressure	10 bar
