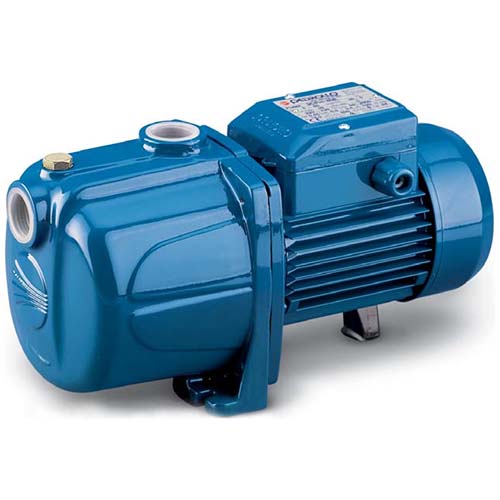

Centrifugal multistage pump Pedrollo 4CPm 80

Code: 470

Guarantee: 24

250.53 € / 489.99lv.

OPERATING CHARACTERISTICS:

Flow Rate: Up to 80 l/min (4.8 m³/h)
Head: Up to 50 m

Q (m³/hour)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8
Flow (l/min)	0	5	10	15	20	25	30	40	50	60	70	80
Head (meters)	50	48	47	45	43	40.5	38.5	33.5	28	22.5	16	10

CONSTRUCTION FEATURES:

Diffusers: Noryl with wear-resistant rings
Rear Cover: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical Seal: Ceramic-graphite NBR

Multistage centrifugal pumps of this type are recommended for use with clean water and liquids that are chemically non-aggressive towards the materials from which the pumps are made. Due to their reliability and quiet operation, these pumps are suitable for domestic applications such as automatic water supply for small and medium-sized tanks, pressure maintenance units, irrigation of crops, gardens, and similar uses. The pumps should be installed in enclosed spaces or locations protected from atmospheric influences.

Category	Specifications
Maximum Head	50 m
Maximum Flow Rate	80 l/min (4.8 m³/h)
Inlet Connection	G 1"
Outlet Connection	G 1"
Maximum Suction Depth	7 m
Single-phase or Three-phase Motor	Single-phase 230 V - 50 Hz
Power (P2)	0.60 kW 0.85 HP
Rotation Speed (RPM)	2900
Insulation Class	F
Protection Rating	IP 44
Type	Horizontal Multistage
Pump Body	Cast Iron
Impeller	Noryl
Usage	Domestic; Public
Liquid Type	Clean Water
Min. Liquid Temperature	-10°C
Max. Liquid Temperature	+40°C
Max. Ambient Temperature	+40°C
Max. Working Pressure	6 bar
