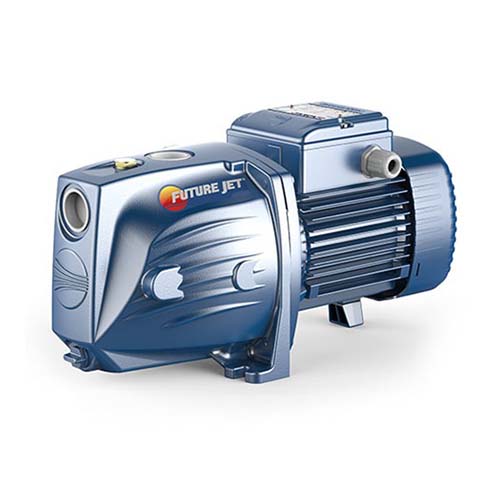

Self-priming pump Pedrollo FUTURE JETm 1A

Code: 9581

Guarantee: 24

229 € / 447.89lv.

OPERATIONAL CHARACTERISTICS:

Flow Rate: up to 100 l/min (6.0 m³/h)
Head: up to 48 m

Q (m³/h)	0	0.3	0.6	1.2	2.4	3.6	4.8	5.4	5.7	6.0
l/min	0	5	10	20	40	60	80	90	95	100
H (m)	48	44	40.6	34.5	25.2	18.7	13.7	11.4	10.2	9

CONSTRUCTIVE CHARACTERISTICS:

Back Cover: Stainless steel AISI 304
Injector with Diffuser: Noryl
Shaft: Stainless steel AISI 431
Mechanical Seal: Ceramic - Graphite - NBR

ADVANTAGES OF FUTURE JET OVER CLASSIC JET PUMPS:

High hydraulic efficiency
Reduced energy consumption by up to 50%
Reduced turbulence for much more stable pump operation
Better power-to-flow ratio

The FUTURE JET self-priming pumps are suitable for transferring clean water without abrasive particles, as well as chemically non-aggressive fluids relative to the materials from which the pumps are made. They are designed to operate even in the presence of air in the pumped liquid. Due to their reliability and ease of use, these pumps are recommended for domestic applications, including water transfer in combination with small or medium expansion tanks, garden and plant irrigation, and more. The installation of these pumps should be done in enclosed spaces or in locations protected from atmospheric conditions.

Characteristic	Description
Maximum Head:	48 m
Maximum Flow Rate:	100 l/min (6.0 m³/h)
Inlet Connection:	G 1"
Outlet Connection:	G 1"
Maximum Suction Depth:	9 m
Single-Phase or Three-Phase Motor:	Single-phase 230 V - 50 Hz
Power (P2):	0.55 kW (0.75 HP)
Rotational Speed (RPM):	2900
Insulation Class:	F
Protection Rating:	IP X4
Group:	Self-Priming
Pump Body:	Cast iron
Impeller:	Stainless steel AISI 304
Application:	Domestic
Liquid Type:	Clean water
Minimum Liquid Temperature:	-10°C
Maximum Liquid Temperature:	+40°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	6 bar
