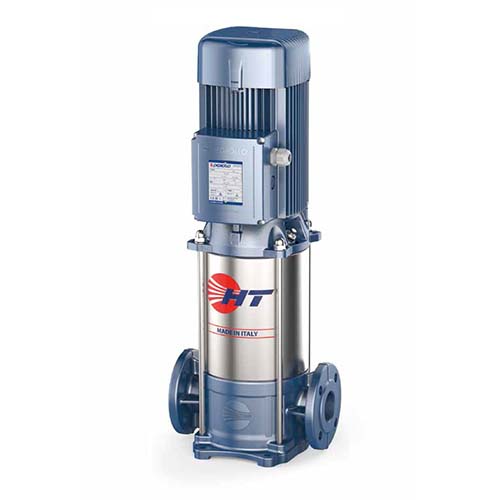

Vertical multistage pump Pedrollo HT 3/6

Code: 10507

Guarantee: 24

1118 € / 2,186.62lv.

PERFORMANCE CHARACTERISTICS:

Flow Rate: up to 90 l/min (5.4 m³/h)
Head: up to 96 m

Q (m³/h)	0	0.3	0.6	1.2	2.4	3.6	4.8	5.4
l/min	0	5	10	20	40	60	80	90
H (m)	96	94	92	89	80	68.5	54	45.5

CONSTRUCTIVE CHARACTERISTICS:

Body: Cast iron JL250
Diffusers: Stainless steel AISI 304
Impellers: Stainless steel AISI 304
Diaphragms: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical Seal: CERAMIC – GRAPHITE – NBR

The pumps are suitable for water supply, transporting clean fluids, and increasing pressure in civil, industrial, and agricultural installations. The multistage design ensures very low noise levels during operation. The newly designed electric motor, intended for use with inverters, provides balanced and quiet operation. Efficiency class IE3, insulation class F, and protection class IPX4.

Characteristic	Description
Maximum Head:	96 m
Maximum Flow Rate:	90 l/min (5.4 m³/h)
Inlet Connection:	G 1"
Outlet Connection:	G 1"
Maximum Suction Depth:	7 m
Motor
Single-phase or Three-phase Motor:	Three-phase 230/400 V - 50 Hz
Power (P2):	1.5 kW (2 HP)
Rotational Speed (rpm):	2900
Insulation Class:	F
Protection Class:	IP X4
Constructive Features and Use
Type:	Vertical Multistage
Pump Body:	Cast Iron
Impeller:	AISI 304
Use:	Agricultural; Industrial; Public
Limits
Fluid Type:	Clean Water
Minimum Fluid Temperature:	-15°C
Maximum Fluid Temperature:	+90°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	16 bar
