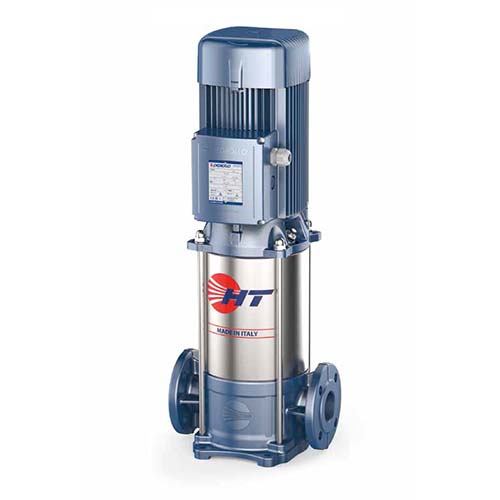

Vertical multistage pump Pedrollo HT 8/6 three-phase

Code: 10165

Guarantee: 24

1282 € / 2,507.37lv.

OPERATIONAL CHARACTERISTICS:

Flow Rate: up to 200 l/min (12 m³/h)
Head: up to 87 m

Q (m³/h)	0	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.8	12.0
l/min	0	20	40	60	80	100	120	140	160	180	200
H (m)	87	85.5	83	79	74	68	61.5	53.5	45	36	26

CONSTRUCTIVE CHARACTERISTICS:

Body: Cast iron JL250
Diffusers: Stainless steel AISI 304
Impellers: Stainless steel AISI 304
Diaphragms: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical Seal: GRAPHITE - CERAMIC – NBR

The pumps are suitable for water supply, transfer of clean liquids, and pressure boosting in civil, industrial, and agricultural installations. The multistage design ensures extremely low noise levels during operation. The newly designed electric motor, intended for use with inverters, provides balanced and quiet operation. Efficiency class IE3, insulation class F, and protection IPX4.

Characteristic	Description
Maximum Head:	87 m
Maximum Flow Rate:	200 l/min (12.0 m³/h)
Inlet Connection:	G 1½"
Outlet Connection:	G 1½"
Maximum Suction Depth:	7 m
Motor
Type:	Three-phase 230/400 V - 50 Hz
Power (P2):	2.2 kW (3 HP)
Speed (RPM):	2900
Insulation Class:	F
Protection Rating:	IP X4
Constructive Characteristics and Usage
Type:	Vertical multistage
Pump Body:	Cast iron
Impeller:	AISI 304
Usage:	Agricultural; Industrial; Public
Limits
Liquid Type:	Clean water
Minimum Liquid Temperature:	-15°C
Maximum Liquid Temperature:	+90°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	16 bar
