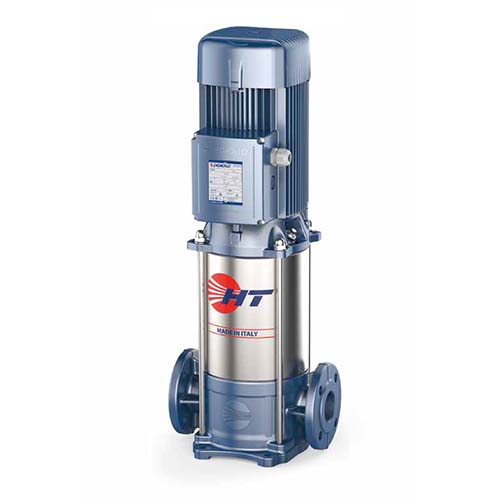

Vertical multistage pump Pedrollo HT 5/5

Code: 10535

Guarantee: 24

1204 € / 2,354.82lv.

OPERATIONAL CHARACTERISTICS:

Flow Rate: up to 130 l/min (7.8 m³/h)
Head: up to 81 m

Q (m³/h)	0	0.3	0.6	1.2	2.4	3.6	4.8	5.4	6	7.8
l/min	0	5	10	20	40	60	80	90	100	130
H (m)	81	81	80.5	79	76	70	63	58.5	54	39

CONSTRUCTIVE CHARACTERISTICS:

Body: Cast iron JL250
Diffusers: Stainless steel AISI 304
Impellers: Stainless steel AISI 304
Diaphragms: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical Seal: CERAMIC – GRAPHITE – NBR

The pumps are suitable for water supply, transfer of clean liquids, and pressure boosting in civil, industrial, and agricultural installations. The multi-stage design ensures very low noise levels during operation. The electric motor, with a new design and intended for use with inverters, offers balanced and quiet operation. Efficiency class IE3, insulation class F, and protection IPX4.

Characteristic	Description
Maximum Head:	81 m
Maximum Flow Rate:	130 l/min (7.8 m³/h)
Inlet Connection:	G 1¼"
Outlet Connection:	G 1¼"
Maximum Suction Depth:	7 m
Motor
Single-phase or Three-phase Motor:	Three-phase 230/400 V - 50 Hz
Power (P2):	1.8 kW (2.5 HP)
Rotational Speed (RPM):	2900
Insulation Class:	F
Protection Degree:	IP X4
Constructive Features and Usage
Type:	Vertical Multistage
Pump Body:	Cast iron
Impeller:	AISI 304
Usage:	Agricultural; Industrial; Public
Limits
Fluid Type:	Clean water
Minimum Fluid Temperature:	-15°C
Maximum Fluid Temperature:	+90°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	16 bar
