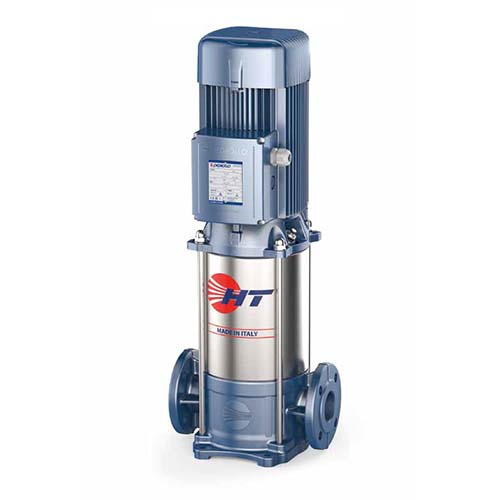

Vertical multistage pump Pedrollo HT 5/6

Code: 10007

Guarantee: 24

1258 € / 2,460.43lv.

OPERATING CHARACTERISTICS:

Flow Rate: up to 130 l/min (7.8 m³/h)
Head: up to 98 m

Q (m³/h)	0	0.3	0.6	1.2	2.4	3.6	4.8	5.4	6	7.8
l/min	0	5	10	20	40	60	80	90	100	130
H (m)	98	97	97	95	91	84	75	70	65	47

CONSTRUCTION FEATURES:

Body: Cast iron JL250
Diffusers: Stainless steel AISI 304
Impellers: Stainless steel AISI 304
Diaphragms: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical Seal: CERAMIC – GRAPHITE – NBR

These pumps are suitable for water supply, transfer of clean liquids, and pressure boosting in residential, industrial, and agricultural installations. The multi-stage design ensures very low noise levels during operation. The electric motor, with its new design for inverter operation, provides balanced and quiet performance. Efficiency class IE3, insulation class F, and protection IPX4.

Characteristic	Description
Maximum Head:	98 m
Maximum Flow Rate:	130 l/min (7.8 m³/h)
Inlet Connection:	G 1¼"
Outlet Connection:	G 1¼"
Maximum Suction Depth:	7 m
Motor
Single-phase or Three-phase Motor:	Three-phase 230/400 V - 50 Hz
Power (P2):	2.2 kW (3 HP)
Speed (RPM):	2900
Insulation Class:	F
Protection Rating:	IP X4
Construction Features and Usage
Group:	Vertical multi-stage
Pump Body:	Cast iron
Impeller:	AISI 304
Usage:	Agricultural; Industrial; Public
Limits
Type of Liquid:	Clean water
Minimum Liquid Temperature:	-15°C
Maximum Liquid Temperature:	+90°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	16 bar
