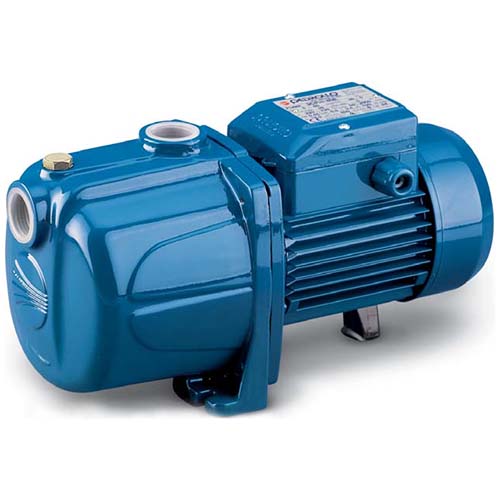

Centrifugal multistage pump Pedrollo 3CPm 100

Code: 466

Guarantee: 24

264 € / 516.34lv.

OPERATIONAL CHARACTERISTICS:

Flow rate up to 120 l/min (7.2 m³/h)
Head up to 36 m

Q (m³/hour)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2
l (l/min)	0	5	10	15	20	25	30	40	50	60	70	80	90	100	110	120
H (meters)	36	35.5	35	34	33.5	32.5	32	30	28	26	23	20	17	13.5	10	5

CONSTRUCTIVE CHARACTERISTICS:

Diffusers: Noryl with abrasion-resistant rings
Back cover: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical seal: Ceramic-graphite NBR

Multistage centrifugal pumps of this type are recommended for handling clean water and fluids that are chemically non-aggressive to the materials from which the pumps are made. Due to their reliability and quiet operation, these pumps are suitable for domestic applications, such as automatic water supply for small and medium-sized tanks, automatic pressure maintenance units, irrigation of plants, gardens, etc. The pumps should be installed in enclosed spaces or in locations protected from atmospheric conditions.

Category	Specifications
Maximum Head	36 m
Maximum Flow Rate	120 l/min (7.2 m³/h)
Inlet Connection	G 1"
Outlet Connection	G 1"
Max. Suction Depth	7 m
Single-phase or Three-phase Motor	Single-phase 230 V - 50 Hz
Power (P2)	0.60 kW 0.85 HP
Rotation Speed (RPM)	2900
Insulation Class	F
Protection Degree	IP 44
Type	Horizontal Multistage
Pump Body	Cast Iron
Impeller	Noryl
Application	Domestic; Public
Fluid Type	Clean Water
Min. Fluid Temperature	-10°C
Max. Fluid Temperature	+40°C
Max. Ambient Temperature	+40°C
Max. Operating Pressure	6 bar
