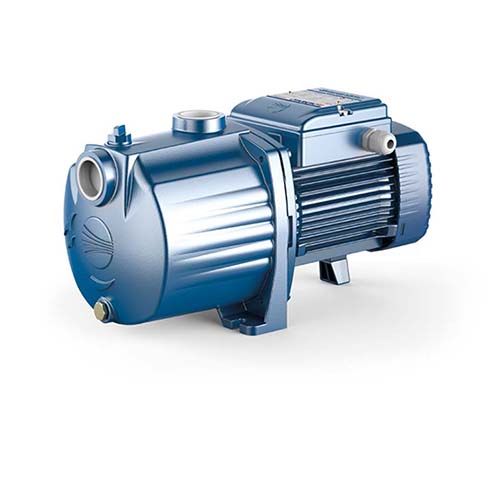

Centrifugal multistage pump Pedrollo 4CP 100

Code: 465

Guarantee: 24

314 € / 614.13lv.

WORKING CHARACTERISTICS:

Flow rate up to 130 l/min (7.8 m³/h)
Head up to 50 m

Q (m³/hour)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2	7.8
Flow (l/min)	0	5	10	15	20	25	30	40	50	60	70	80	90	100	110	120	130
Head (meters)	50	50	49	48	47	46	45	42	39.5	37	34	30.5	26.5	22	17	11	5

CONSTRUCTIVE CHARACTERISTICS:

Diffusers: Noryl with wear-resistant rings
Back cover: Stainless steel AISI 304
Shaft: Stainless steel AISI 431
Mechanical seal: Ceramic-graphite NBR

Multi-stage centrifugal pumps of this type are suitable for use with clean water and liquids that are chemically non-aggressive to the materials from which the pumps are made. They offer reliability and quiet operation, making them ideal for domestic applications such as automatic water supply for small and medium-sized tanks, automatic pressure-maintaining units, irrigation of crops, gardens, and more. The pumps should be installed in enclosed spaces or in areas protected from atmospheric influences.

Category	Specifications
Maximum Head	50 m
Maximum Flow Rate	130 l/min (7.8 m³/h)
Inlet Connection	G 1"
Outlet Connection	G 1"
Max. Suction Depth	7 m
Motor Type	Three-phase 230/400 V - 50 Hz
Power (P2)	0.75 kW 1 HP
Speed (RPM)	2900
Insulation Class	F
Protection Rating	IP X4
Energy Efficiency (for three-phase only)	IE3
Group	Horizontal Multi-stage
Pump Body	Cast Iron
Impeller	Noryl
Usage	Domestic
Fluid Type	Clean Water
Min. Fluid Temperature	-10°C
Max. Fluid Temperature	+40°C
Max. Ambient Temperature	+40°C
Max. Operating Pressure	6 bar
