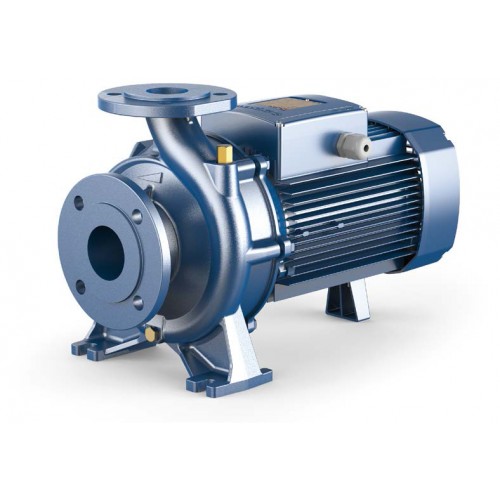

Centrifugal pump Pedrollo F 65/250 A (without counter flange)

Code: 3433

Guarantee: 24

6633 € / 12,973.02lv.

PERFORMANCE CHARACTERISTICS:

Flow Rate: up to 2600 l/min (156 m³/h)
Head: up to 95 m

Q (m³/h)	24	40	60	80	100	120	141	150	156
l/min	400	667	1000	1333	1667	2000	2350	2500	2600
H (m)	95	95	94	92	88	82.5	75	71	68

CONSTRUCTIVE FEATURES:

Motor Bracket: Cast Iron
Shaft: Stainless Steel AISI 431
Mechanical Seal: Graphite - Ceramic - NBR

The F-series centrifugal pumps are designed for transporting clean water without abrasive particles and chemically non-aggressive liquids relative to the materials used in the pump construction. This series is ideal for cooling, heating, circulation, and air conditioning systems. It can also be used in firefighting and irrigation systems, as well as in industry and agriculture. These pumps should be installed in enclosed spaces or in locations protected from environmental factors.

Feature	Description
Maximum Head:	95 m
Maximum Flow Rate:	2600 l/min (156 m³/h)
Inlet Connection:	DN 80
Outlet Connection:	DN 65
Maximum Suction Depth:	7 m
Motor
Single-Phase or Three-Phase Motor:	Three-Phase 400/690 V - 50 Hz
Power (P2):	45 kW 60 HP
Rotation Speed (RPM):	2900
Insulation Class:	F
Protection Rating:	IP 55
Energy Efficiency (for three-phase only):	IE3
Constructive Features and Usage
Type:	Standard Centrifugal
Pump Housing:	Cast Iron
Impeller:	Cast Iron
Usage:	Industrial
Limits
Liquid Type:	Clean Water
Minimum Liquid Temperature:	-10°C
Maximum Liquid Temperature:	+90°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	10 bar
