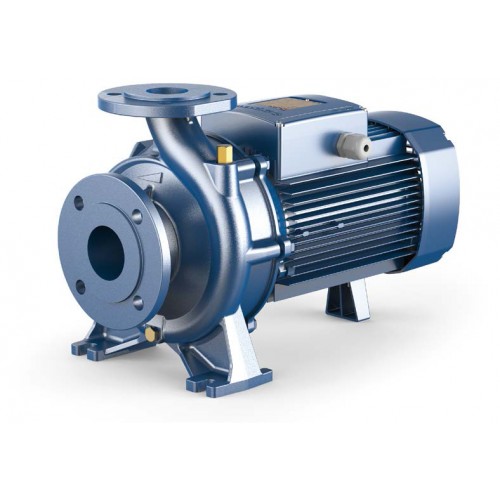

Centrifugal pump Pedrollo F 65/250 B (without counter flange)

Code: 3432

Guarantee: 24

6461 € / 12,636.62lv.

PERFORMANCE CHARACTERISTICS:

Flow rate: up to 2500 l/min (150 m³/h)
Head: up to 87 m

Q (m³/h)	24	40	60	80	100	120	141	150
l/min	400	667	1000	1333	1667	2000	2350	2500
H (m)	87	87	86	84	80	74	66.5	62

CONSTRUCTION CHARACTERISTICS:

Motor bracket: cast iron
Shaft: stainless steel AISI 431
Mechanical seal: graphite - ceramic - NBR

Centrifugal pumps from the F series are suitable for transporting clean water, free of abrasive particles and chemically non-aggressive liquids towards the materials from which the pumps are made. This series of pumps is ideal for cooling, heating, circulation, and air conditioning systems. They can also be used in firefighting and irrigation systems, as well as in industry and agriculture. The installation of these pumps should be carried out indoors or in locations protected from weather conditions.

Feature	Description
Maximum head:	87 m
Maximum flow rate:	2500 l/min (150 m³/h)
Inlet connection:	DN 80
Outlet connection:	DN 65
Maximum suction depth:	7 m
Motor
Single-phase or three-phase motor:	Three-phase 400/690 V - 50 Hz
Power (P2):	37 kW 50 HP
Rotation speed (rpm):	2900
Insulation class:	F
Protection class:	IP 55
Energy efficiency (three-phase only):	IE3
Construction features and usage
Group:	Standardized centrifugal
Pump body:	Cast iron
Impeller:	Cast iron
Usage:	Industrial
Limits
Fluid type:	Clean water
Minimum fluid temperature:	-10°C
Maximum fluid temperature:	+90°C
Maximum ambient temperature:	+40°C
Maximum operating pressure:	10 bar
