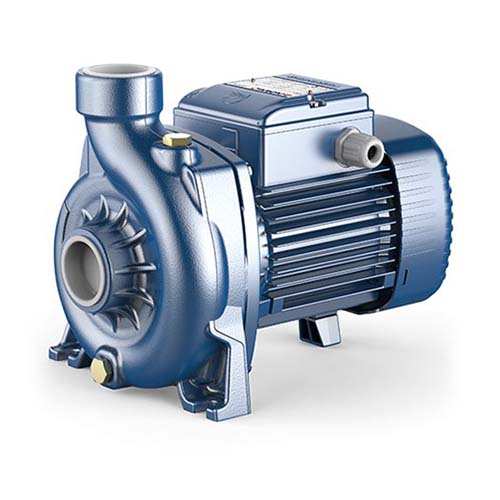

Centrifugal pump with open impeller Pedrollo NGAm 3B

Code: 9870

Guarantee: 24

629 € / 1,230.22lv.

OPERATING CHARACTERISTICS:

Flow rate up to 840 l/min (50.4 m³/h)
Head up to 17 m

Q (m³/h)	0	6	12	18	24	27	33	42	46.2	50.4
l/min	0	100	200	300	400	450	550	700	770	840
H (meters)	17	16.5	16	15.3	14.5	14	12.8	10.3	8.8	7

CONSTRUCTION CHARACTERISTICS:

Rear cover: Cast iron JL 200
Shaft: Stainless steel AISI 431
Mechanical seal: Ceramic-graphite-NBR

The design of the open impeller allows for the pumping of liquids containing relatively high levels of impurities without the risk of clogging the impeller. The NGA pumps are particularly suitable for pumping liquids that are not completely clean, ensuring the passage of solid particles up to Ø20 mm. This makes them suitable for transferring water from canals, rivers, reservoirs, swimming pools, and for use in the industrial sector. Centrifugal pumps in this series are suitable for transferring liquids that are chemically non-aggressive to the materials from which the pumps are made. These pumps should be installed in enclosed spaces or in locations protected from atmospheric influences.

Main Characteristics

Category	Specifications
Maximum Head	17 m
Maximum Flow Rate	840 l/min (50.4 m³/h)
Inlet Connection	G 2"
Outlet Connection	G 2"
Maximum Suction Depth	7 m
Motor
Single-phase or Three-phase Motor	Single-phase 230 V - 50 Hz
Power (P2)	1.8 kW 2.5 HP
Speed (RPM)	2900
Insulation Class	F
Protection Class	IP X4
Construction Features and Usage
Group	Centrifugal with Open Impeller
Pump Casing	Cast Iron
Impeller	Open, Cast Iron JL 250
Usage	Domestic; Industrial; Agricultural
Limits
Type of Liquid	Clean Water; Water with Impurities
Minimum Liquid Temperature	-10°C
Maximum Liquid Temperature	+90°C
Maximum Ambient Temperature	+40°C
Maximum Working Pressure	10 bar
