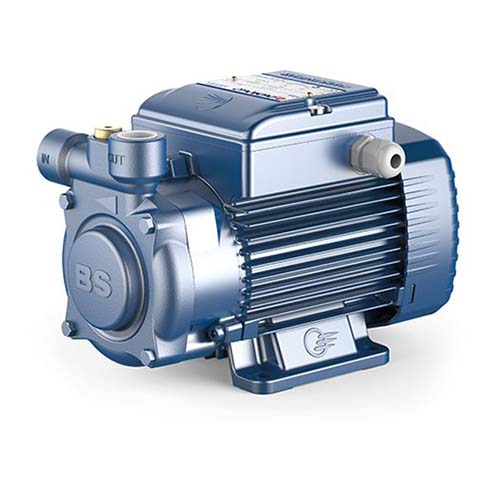

Peripheral pump Pedrollo PQm 81 - Bs

Code: 9980

Guarantee: 24

354.33 € / 693.01lv.

OPERATIONAL CHARACTERISTICS:

Flow Rate: up to 20 l/min (1.2 m³/h)
Head: up to 95 m

Q (m³/h)	0	0.06	0.12	0.24	0.36	0.48	0.60	0.72	0.84	0.96	1.08	1.2
l/min	0	1	2	4	6	8	10	12	14	16	18	20
H (m)	95	92	87.5	79	70.5	63	53	44.5	36	27.5	18.5	10

CONSTRUCTIVE FEATURES:

Motor Bracket: Aluminum with bronze interior coating, which reduces starting difficulties caused by impeller blocking after long periods of pump inactivity.
Shaft: Stainless steel AISI 431
Mechanical Seal: Silicon carbide - graphite - NBR

These pumps are suitable for use with clean water without abrasive particles, as well as with fluids that are chemically non-aggressive to the material of the pump. The hydraulic characteristics of these pumps, combined with their compactness, make them suitable for industrial applications. The pumps should be installed in enclosed spaces or in locations protected from atmospheric influences.

Characteristic	Description
Maximum Head:	95 m
Maximum Flow Rate:	20 l/min (1.2 m³/h)
Inlet Connection:	G ½"
Outlet Connection:	G ½"
Maximum Suction Depth:	8 m
Single-phase or Three-phase Motor:	Single-phase 230 V - 50 Hz
Power (P2):	0.55 kW (0.75 HP)
Speed (RPM):	2900
Insulation Class:	F
Protection Degree:	IP X4
Group:	Peripheral
Pump Body:	Cast iron
Impeller:	Brass
Application:	Industrial
Fluid Type:	Clean water
Minimum Fluid Temperature:	-10°C
Maximum Fluid Temperature:	+90°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	10 bar
