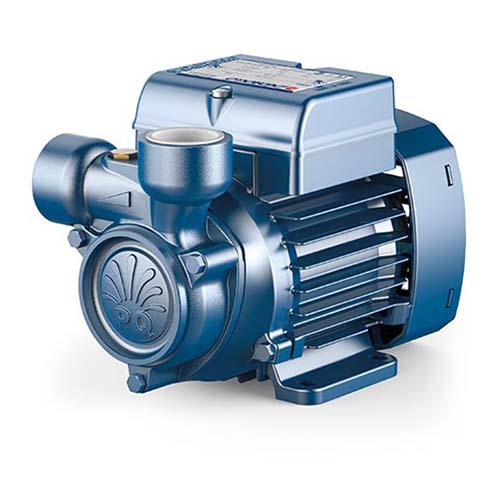

Peripheral pump Pedrollo PQm 81 - PRO

Code: 1351

Guarantee: 24

324.67 € / 635.00lv.

OPERATIONAL CHARACTERISTICS:

Flow Rate: up to 15 l/min (0.9 m³/h)
Head: up to 80 m

Q (m³/h)	0	0.06	0.12	0.18	0.24	0.30	0.36	0.42	0.48	0.54	0.60	0.66	0.72	0.78	0.84	0.90
l/min	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
H (m)	80	75	70	65	60	55	50	45	40	35	30	25	20	15	10	5

CONSTRUCTIVE CHARACTERISTICS:

Motor Bracket: Aluminum with internal bronze coating, which reduces starting difficulties caused by impeller blockage after a long period of pump inactivity.
Shaft: Stainless steel AISI 431
Mechanical Seal: Silicon carbide-graphite NBR

Peripheral pumps are suitable for pumping clean water without abrasive particles, as well as fluids that are not chemically aggressive to the material of which the pump is made. Thanks to their excellent hydraulic performance and compact design, these pumps are suitable for use in industrial sectors. The pumps should be installed in enclosed spaces or in areas protected from environmental influences.

Characteristic	Description
Maximum Head:	80 m
Maximum Flow Rate:	15 l/min (0.90 m³/h)
Inlet Connection:	G ½"
Outlet Connection:	G ½"
Maximum Suction Depth:	8 m
Single-Phase or Three-Phase Motor:	Single-phase 230 V - 50 Hz
Power (P2):	0.45 kW (0.60 HP)
Rotation Speed (RPM):	2900
Insulation Class:	F
Protection Rating:	IP X4
Group:	Peripheral
Pump Housing:	Cast iron
Impeller:	Brass
Usage:	Industrial
Fluid Type:	Clean water
Minimum Fluid Temperature:	-10°C
Maximum Fluid Temperature:	+90°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	10 bar
