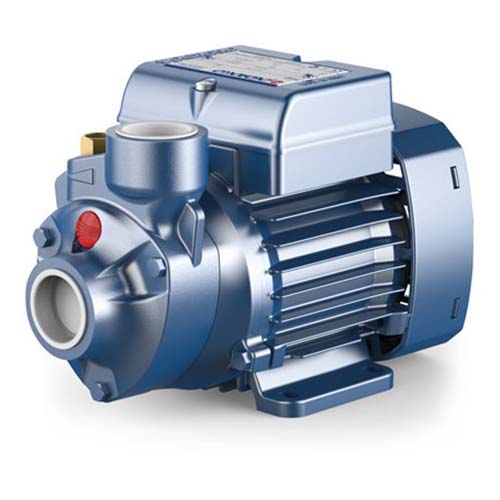

Peripheral pump Pedrollo PKm 300, single-phase 2.2 kW

Code: 9284

Guarantee: 24

452 € / 884.04lv.

WORKING CHARACTERISTICS:

Flow Rate: up to 90 l/min (5.4 m³/h)
Head: up to 100 m

Q (m³/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	3.0	3.3	4.2	4.8	5.4
l/min	0	5	10	15	20	25	30	35	40	50	55	70	80	90
H (m)	100	95	90	85	80	75	70	65	60	50	45	30	20	10

CONSTRUCTIVE CHARACTERISTICS:

Motor Bracket: Aluminum with bronze lining inside, which reduces starting difficulties caused by wheel blockage after a long period of pump inactivity.
Shaft: Stainless steel AISI 431
Mechanical Seal: Ceramic-graphite NBR

Peripheral pumps are recommended for transporting clean water without abrasive particles and chemically non-aggressive fluids towards the materials from which the pumps are made. They are known for their reliability, ease of operation, and efficiency. Most commonly, they are used for domestic purposes, such as water supply in combination with small expansion tanks, and for watering gardens and plantations. These pumps should be installed in enclosed spaces or in locations protected from atmospheric conditions.

Characteristic	Description
Maximum Head:	100 m
Maximum Flow Rate:	90 l/min (5.4 m³/h)
Inlet Connection:	G 1"
Outlet Connection:	G 1"
Maximum Suction Depth:	8 m
Single-phase or Three-phase Motor:	Single-phase 230 V - 50 Hz
Power (P2):	2.2 kW (3 HP)
Speed (RPM):	2900
Insulation Class:	F
Protection Rating:	IP X4
Type:	Peripheral
Pump Housing:	Cast iron
Impeller:	Brass
Application:	Domestic
Fluid Type:	Clean water
Minimum Fluid Temperature:	-10°C
Maximum Fluid Temperature:	+60°C
Maximum Ambient Temperature:	+40°C
Maximum Operating Pressure:	10 bar
