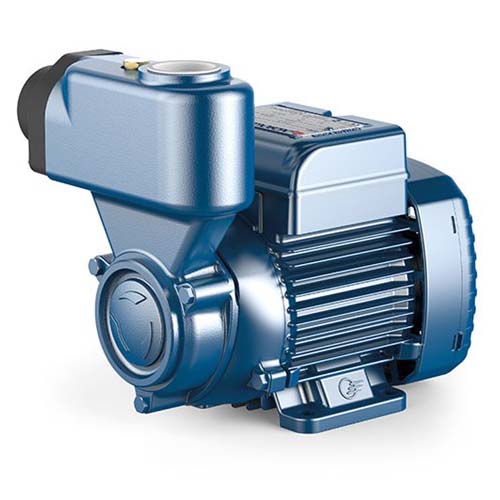

Self-priming peripheral pump Pedrollo PKSm 60 NEW IE2

Code: 10395

Guarantee: 24

138 € / 269.90lv.

OPERATING CHARACTERISTICS:

Flow Rate: up to 40 l/min (2.4 m³/h)
Head: up to 40 m

Q (m³/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4
l/min	0	5	10	15	20	25	30	35	40
H (m)	40	38	33.5	29	24	19.5	15	10	5

CONSTRUCTION FEATURES:

Motor Bracket: Aluminum with brass inside, featuring an anti-blocking function on the front bearing.
Shaft: Stainless steel AISI 431
Mechanical Seal: Ceramic-graphite NBR

ADDITIONAL INFORMATION:

New version with anti-blocking system.
Noise reduction by 20%.
Motor class IE2.

Peripheral self-priming pumps are recommended for transferring clean water without abrasive particles and chemically non-aggressive fluids to the materials from which the pumps are made. Due to their compactness, reliability, and ease of use, these pumps are suitable for domestic applications such as transporting water in combination with a small expansion vessel, irrigating gardens and plantations, pumping water from tanks, and in cases where there is air or gas in the pumped liquid. The pumps are equipped with a non-return valve located on the suction port. Installation should be carried out in enclosed spaces or locations protected from atmospheric influences.

Characteristic	Description
Maximum Head:	40 m
Maximum Flow Rate:	40 l/min (2.4 m³/h)
Inlet Connection:	G 1"
Outlet Connection:	G 1"
Maximum Suction Depth:	9 m
Motor Type:	Single-phase 230 V - 50 Hz
Power (P2):	0.37 kW (0.50 HP)
Speed (RPM):	2900
Insulation Class:	F
Protection Degree:	IP X4
Type:	Peripheral; Self-priming Peripheral
Pump Housing:	Cast Iron
Impeller:	Brass
Application:	Domestic
Liquid Type:	Clean Water
Minimum Liquid Temperature:	-10°C
Maximum Liquid Temperature:	+60°C
Maximum Ambient Temperature:	+50°C
Maximum Operating Pressure:	6 bar
