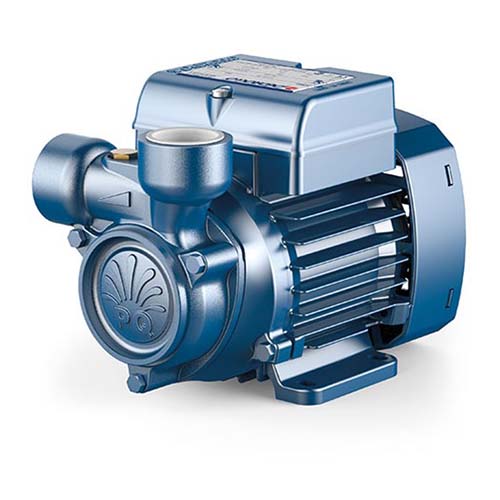

Peripheral pump Pedrollo PQ 81 - PRO

Code: 1323

Guarantee: 24

335.41 € / 656.00lv.

OPERATIONAL CHARACTERISTICS:

Flow Rate: up to 15 l/min (0.9 m³/h)
Head: up to 80 m

Q (m³/h)	0	0.06	0.12	0.18	0.24	0.30	0.36	0.42	0.48	0.54	0.60	0.66	0.72	0.78	0.84	0.90
l/min	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
H (m)	80	75	70	65	60	55	50	45	40	35	30	25	20	15	10	5

CONSTRUCTIVE FEATURES:

Motor Bracket: Aluminum with bronze lining inside, reducing start-up difficulties caused by impeller blockage after prolonged downtime.
Shaft: Stainless steel AISI 431
Mechanical Seal: Silicon carbide-graphite NBR

Peripheral pumps are suitable for pumping clean water without abrasive particles, as well as fluids that are not chemically aggressive towards the material from which the pump is made. Due to their excellent hydraulic performance and compact design, these pumps are ideal for industrial use. Installation should be carried out in enclosed spaces or in places protected from atmospheric conditions.

Characteristic	Description
Maximum Head:	80 m
Maximum Flow Rate:	15 l/min (0.90 m³/h)
Inlet Connection:	G ½"
Outlet Connection:	G ½"
Maximum Suction Depth:	8 m
Single-phase or Three-phase Motor:	Three-phase 230/400 V - 50 Hz
Power (P2):	0.45 kW (0.60 HP)
Rotation Speed (rpm):	2900
Insulation Class:	F
Protection Rating:	IP X4
Energy Efficiency (Three-phase only):	IE3
Group:	Peripheral
Pump Body:	Cast iron
Impeller:	Brass
Usage:	Industrial
Fluid Type:	Clean water
Minimum Fluid Temperature:	-10°C
Maximum Fluid Temperature:	+90°C
Maximum Ambient Temperature:	+40°C
Maximum Working Pressure:	10 bar
